Spiral Staircase Guernsey

Case Study- Model 76

Our customer in this project was replacing an existing dilapidated spiral staircase which was causing concern.

Its replacement was part of a larger refurbishment within the property and  we were originally contact by the client when they spotted the model 76 on our website.  They had filled in one of our contact forms and had received a price before making the decision to visit our showroom here in Romsey.

The renovation works involved the addition of many windows and our client was keen to maintain the passage of light through the house.  The model 76 spiral was a clear winner with its glass treads and stylish good looks.

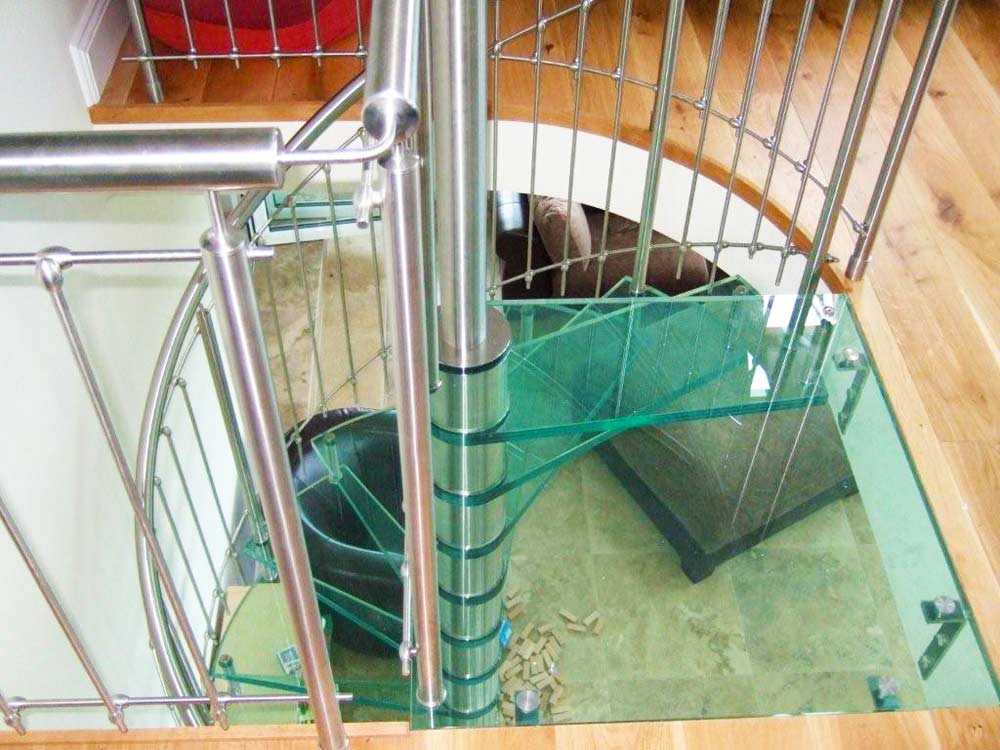

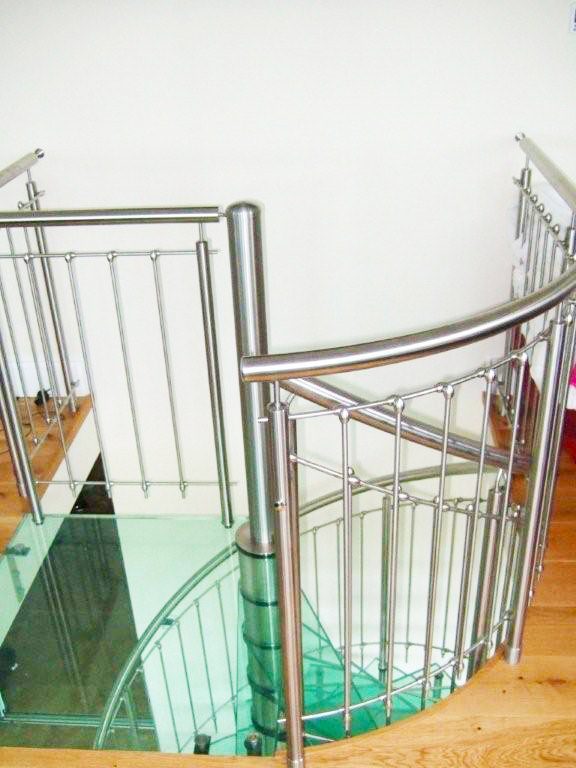

Vertical stainless steel spindles were selected around the spiral staircase and these were topped with a stainless steel handrail.  This balustrade structure continues around the opening at the first floor level.

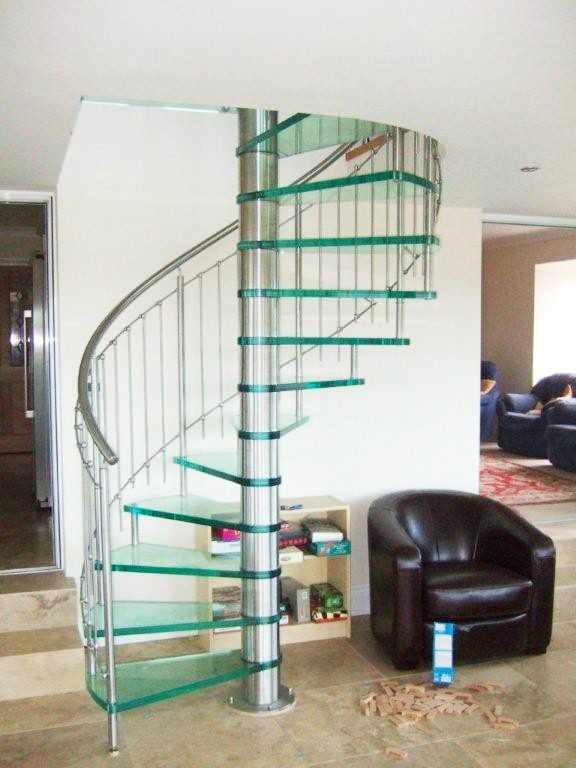

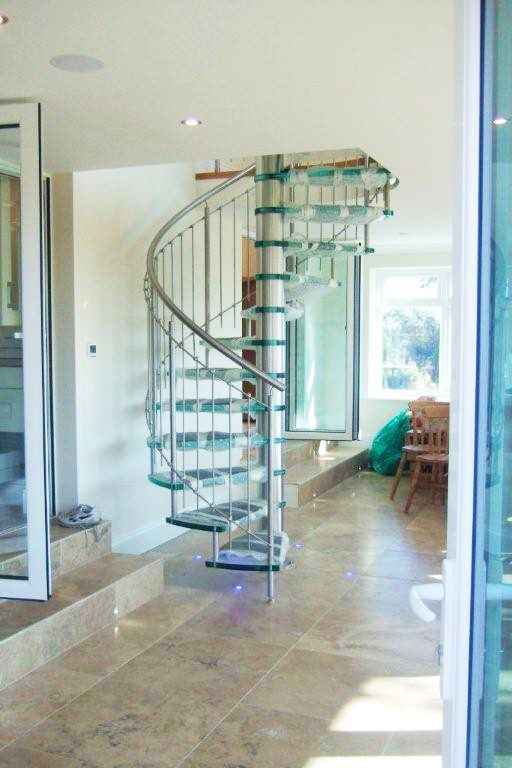

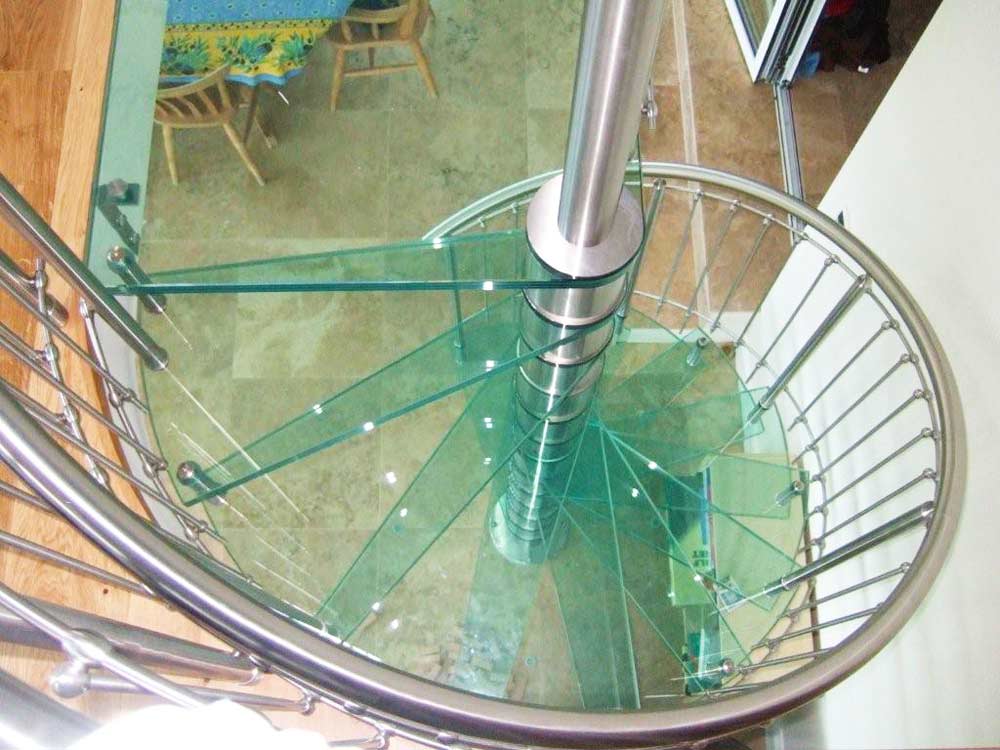

Our happy client sent these pictures to us after they moved back in.

Replacement Spiral Staircase

The model 76 spiral staircase is a custom made model.  Each spiral purchased is manufactured specifically for the floor to floor height of the property.  The rotation is carefully thought out ensuring the entry and exit points work given any constraints in the vicinity.

Our customer selects the treads they prefer (acrylic or glass on the model 76) and the balustrade type.  Vertical spindles are a popular option but we can also offer curved acrylic or glass panels or horizontal stainless steel bars.  In this project the client opted for the smaller profile spindles – 10mm in diameter.

For a price for your model 76 spiral staircase – please fill out our contact form at the bottom of the page.

To see more information on the model 76 spiral  – please click the button below.


Spiral Staircase Guernsey Technical Specification

Floor to floor height 2740mm
Risers 13 @ 210.7mm
Spiral Diameter 1500mm
Clear Tread Width 610mm
Tread Type 30mm Laminated Glass
Balustrade Type 10mm Ø Stainless Steel Spindles
Handrail 37,7mm Ø Stainless Steel
Centre Column Brushed Stainless Barrels
Finish of Steel Brushed Stainless Steel
Additional Landing Balustrade

Comment on Spiral Staircase Guernsey – Model 76 from Complete Stair Systems

Nick Rackham

Sales Manager

" this model 71 spiral was a great addition to this refurb. The customer didn’t like the 16mm normal stainless spindles so we altered the balustrade to consist of 10mm verticals.2
