Bespoke Timber Staircase Coventry

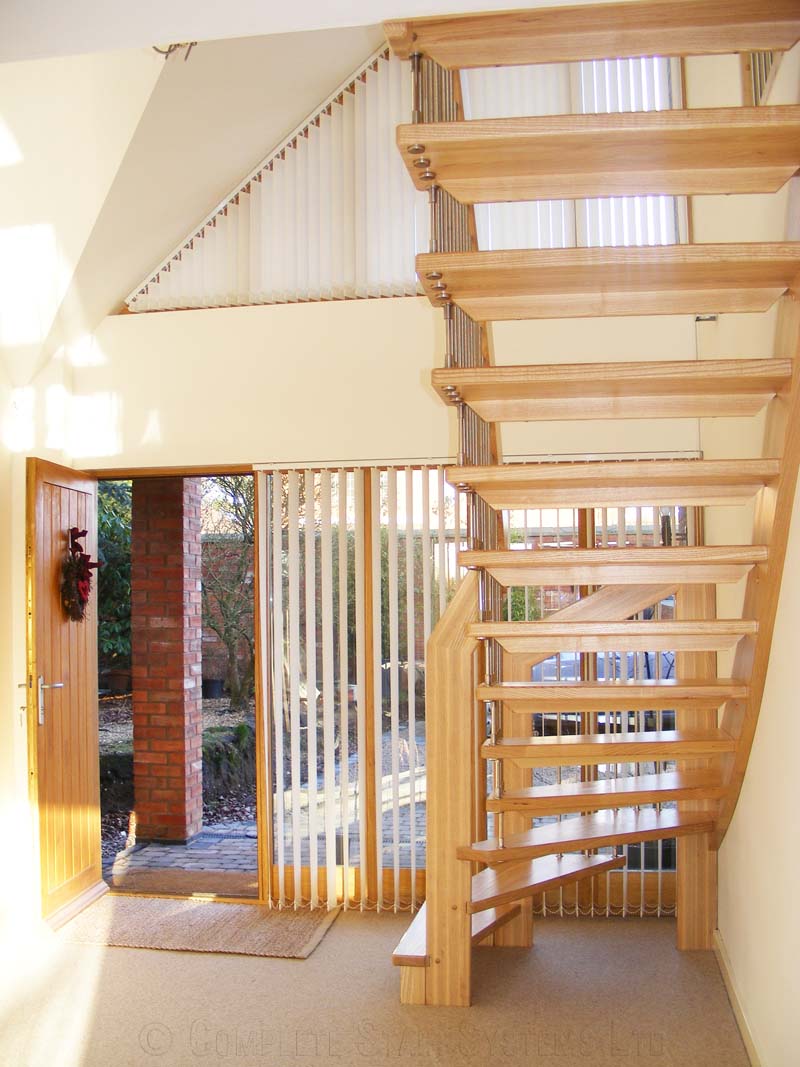

A solid timber staircase was required for a refurbishment in Coventry. Our customer wanted to replace her bulky carpeted staircase with an open riser flight which maximised the passage light from the windows to the front of the property. We supplied our WF solid timber staircase which as well as having open risers, also has no stringer on the open side allowing even more light to flood through. The timber stair was supplied in Ash to match the flooring being used upstairs and we supplied a further 6m of matching landing balustrade to protect the stunning walkway above.

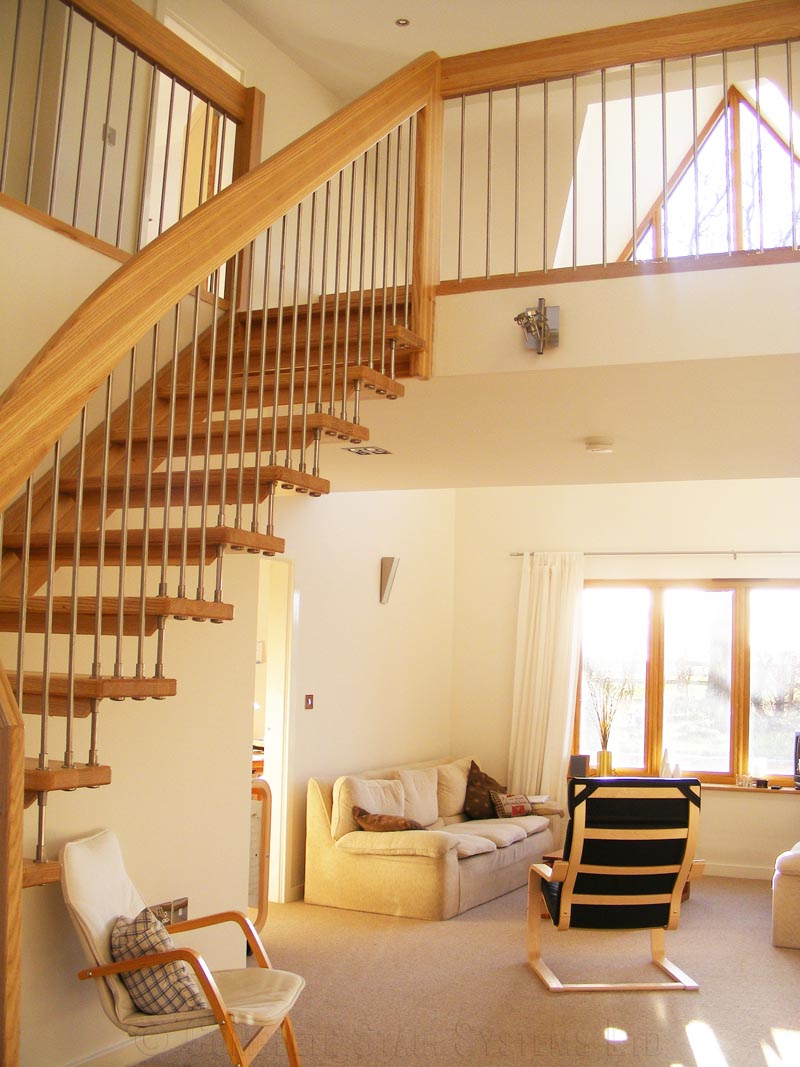

The WF staircase is our most open, floating bespoke timber staircase.  It has no stringer to the internal side so the treads appear to hover in mid air allowing the light to pass through.  This works with a specially designed handrail that has a steel core.  The spindles screw up into this handrail and the treads ‘load’ is therefore transferred to the handrail then to the newels top and bottom.  The WF is available as a straight flight, quarter turn or half turn depending on the location of walls.

View Tread Profile Options

View Handrail Options

View Newel Post Options

View Spindle Options

View Staircase Structure Product Sheet

Download Project Case Study

Staircase Case Sudy

Bespoke Timber Staircase Coventry - Technical Specifications

Support Structure
WF open staircase
Floor to floor height 2750mm
Treads 42mm Ash
Stringers 42mm Ash wall stringer
Balustrade Type 13mm Ø Stainless Steel Spindles
Handrail 160 x 42mm Ash
Newel Posts 160 x 42mm Ash
Finish of Timber
Additional 6m matching landing balustrade

Timber Options

Contact us about project Bespoke Timber Staircase - Coventry
