Bespoke Spiral Staircase Romsey

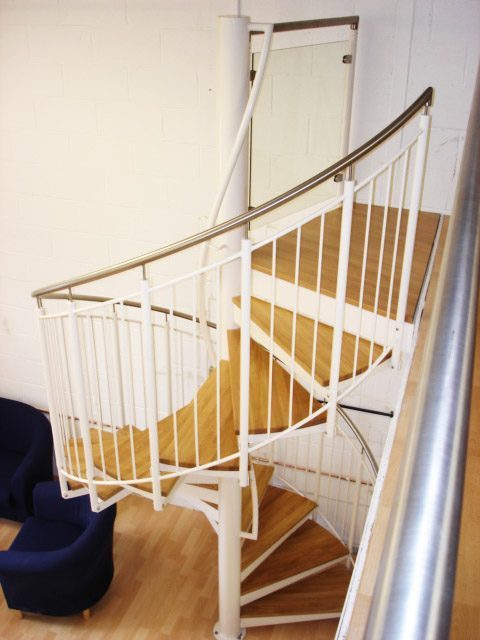

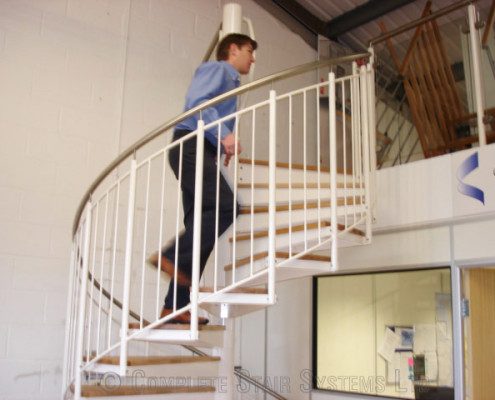

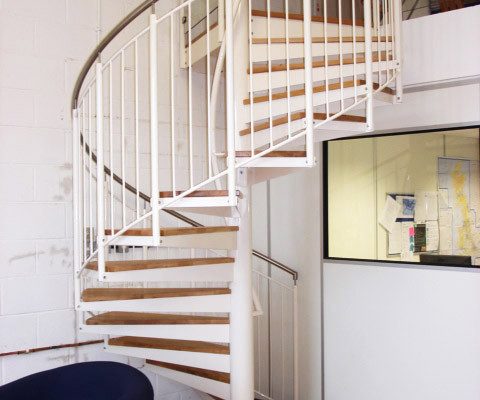

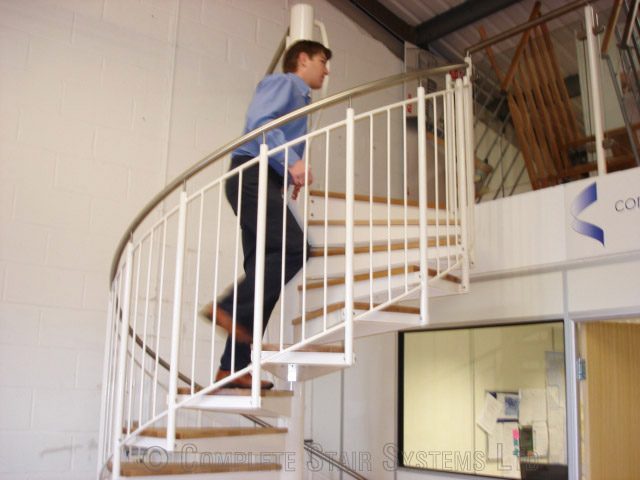

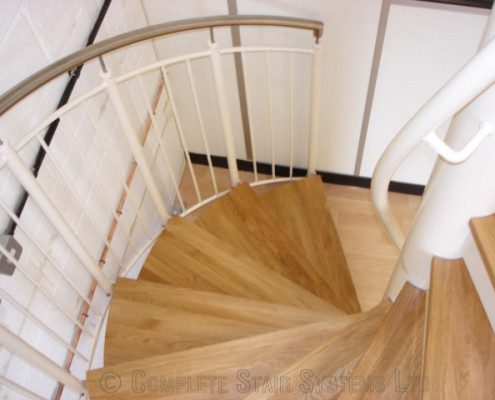

Our client was constructing a showroom and required a bespoke feature spiral to access their mezzanine show deck.
Office Spiral Staircase
As the usage was semi public, we selected one of our fully bespoke spirals with a diameter of 2000mm. To ensure it met the regulations, we included a centre column handrail and ensured the clear tread width was no less than 800mm.

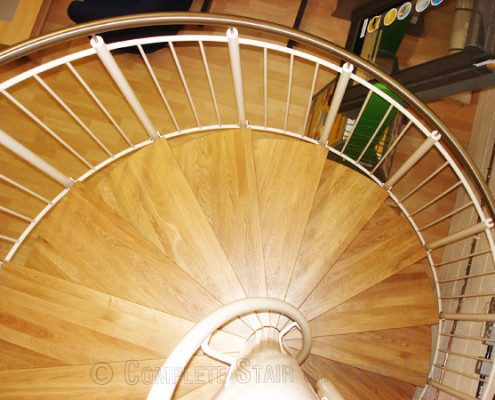

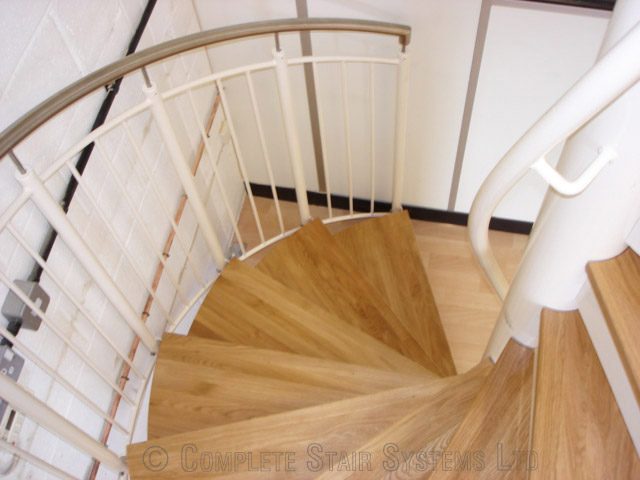

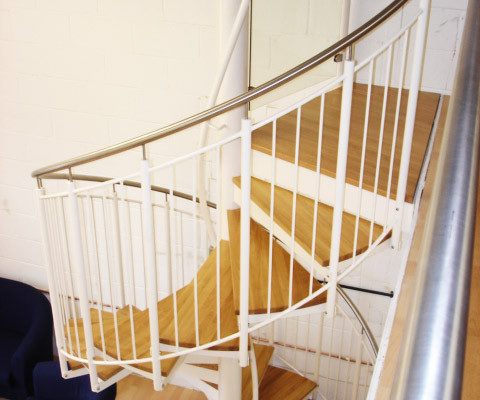

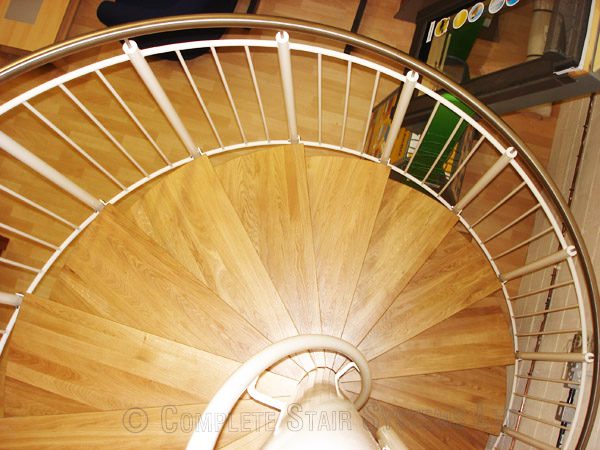

The client chose solid oak treads and a stainless steel handrail to go along with the ‘cream’ powder coated steel structure. There was also a 5m run of glass balustrade along the mezzanine deck. This model is available for viewing.
If you would like a price for “Spiral Staircase Romsey”, then please fill out the form below.

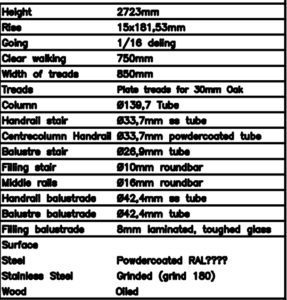

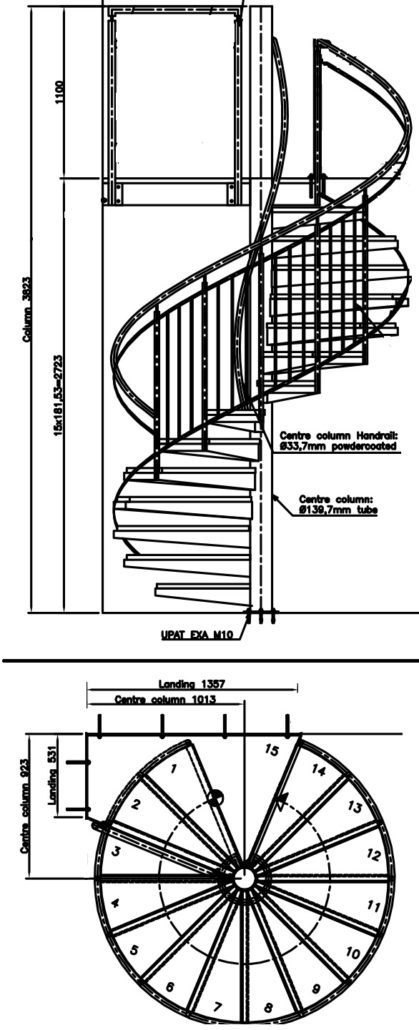

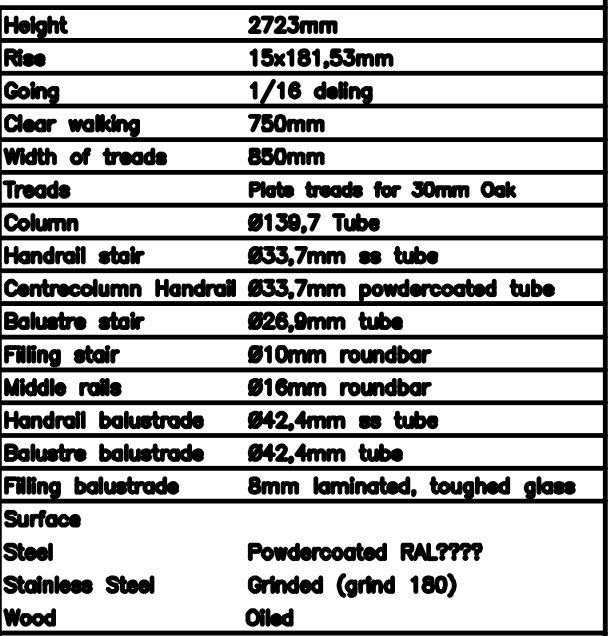

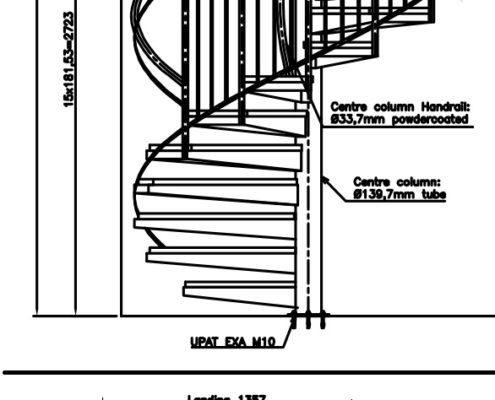

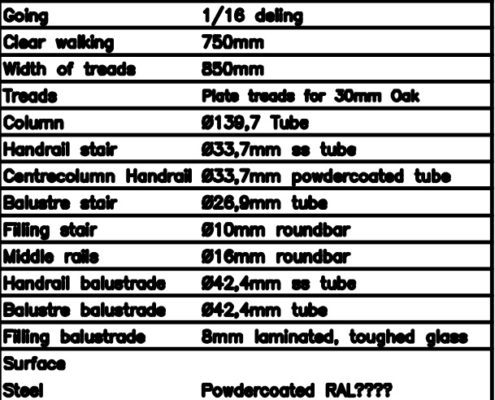

Original Specifications & Drawings
Bespoke Spiral Staircase Romsey - Technical Specifications
| Floor to floor height | 2723mm |
| Risers | 15 @ 181mm |
| Spiral Diameter | 2000mm |
| Clear Tread Width | 800mm |
| Tread Type | 30mm Oak |
| Balustrade Type | 10mm Ø Steel Spindles |
| Handrail | 37,7mm Ø Stainless Steel |
| Centre Column | 139mm Ø |
| Finish of Steel | Powder Coated Off White |
| Additional | Matching landing balustrade with glass panels |
Similar Spiral Stair Projects
Comment on Bespoke Spiral Staircase – Romsey from Complete Stair Systems
Ben Winton
"Entry and exit points were the main concern with this spiral staircase. Plenty of space, and no headroom issues - but the exit upstairs and the entry below were in fixed positions. The solution was to create an unusually shaped platform to enable access downstairs without banging your head"
