Bespoke Staircase Staines

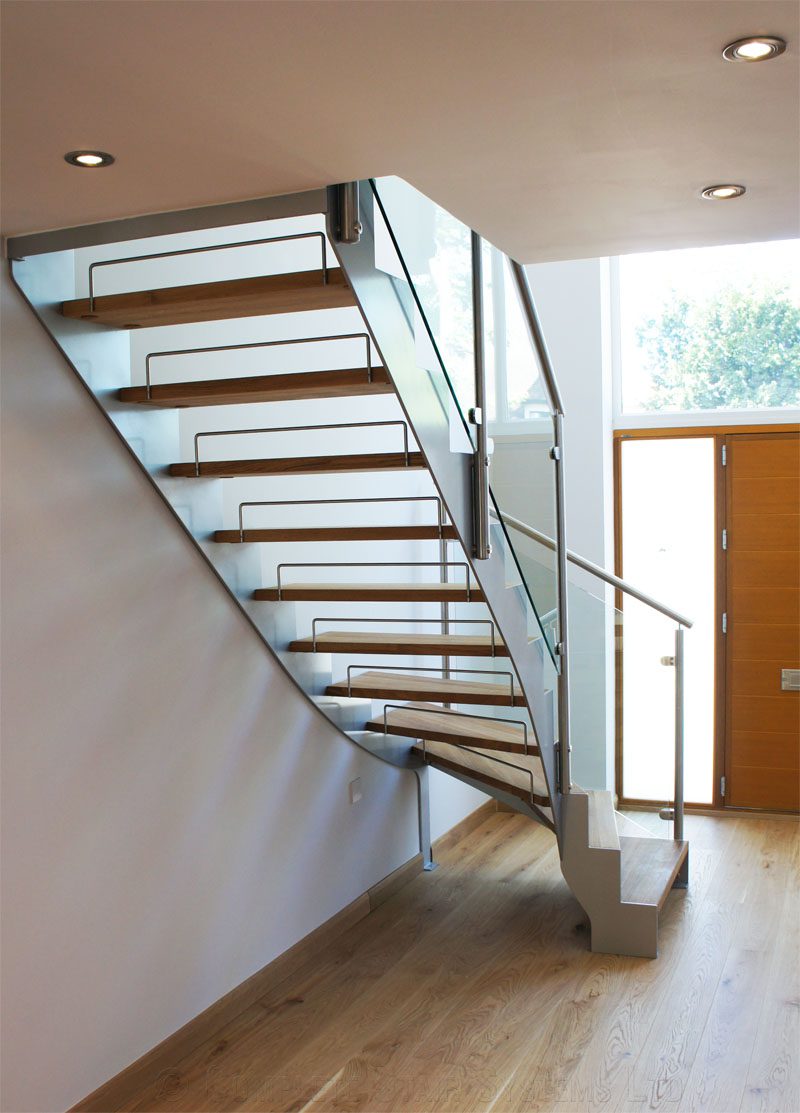

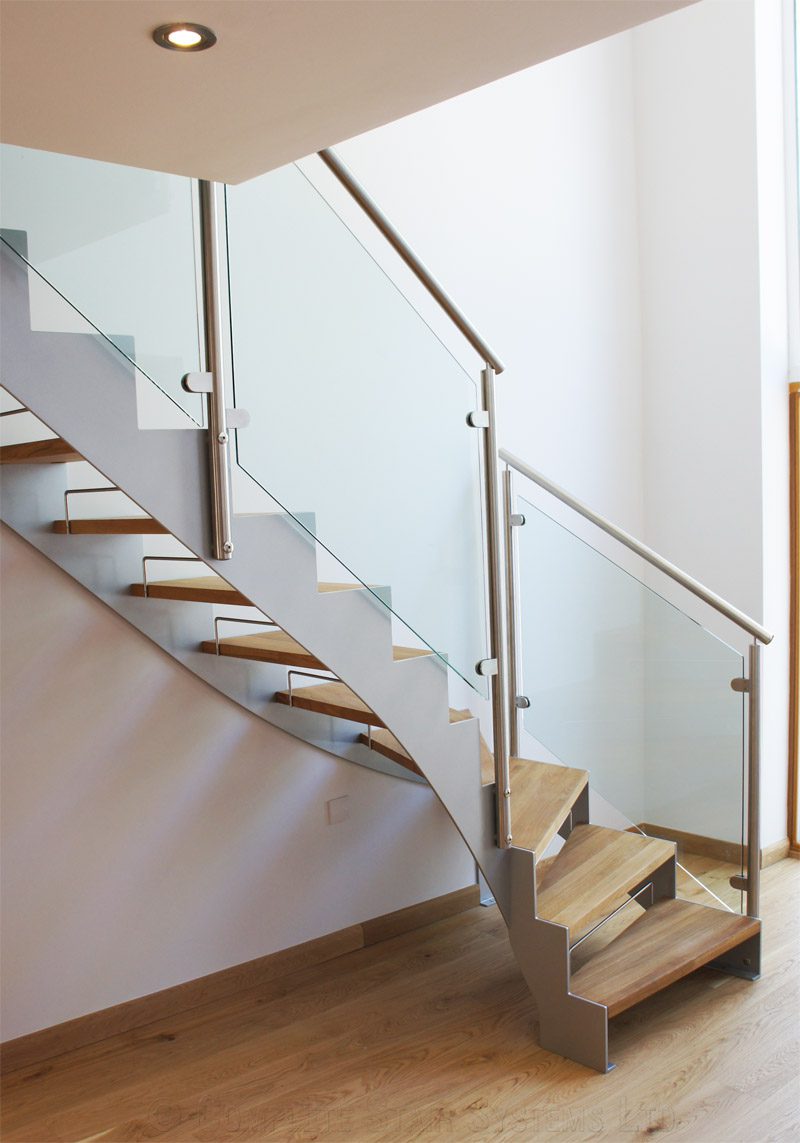

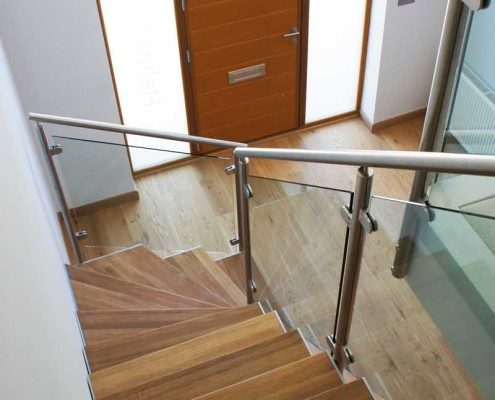

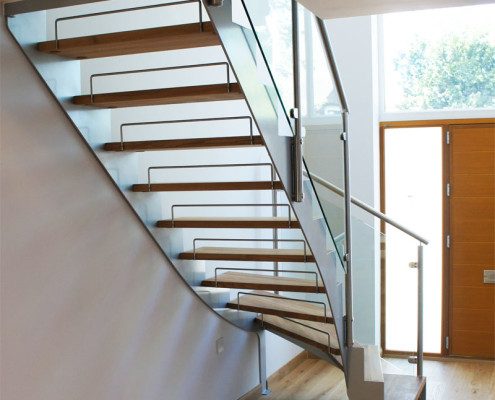

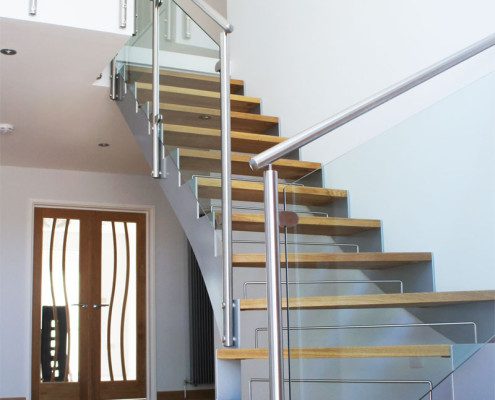

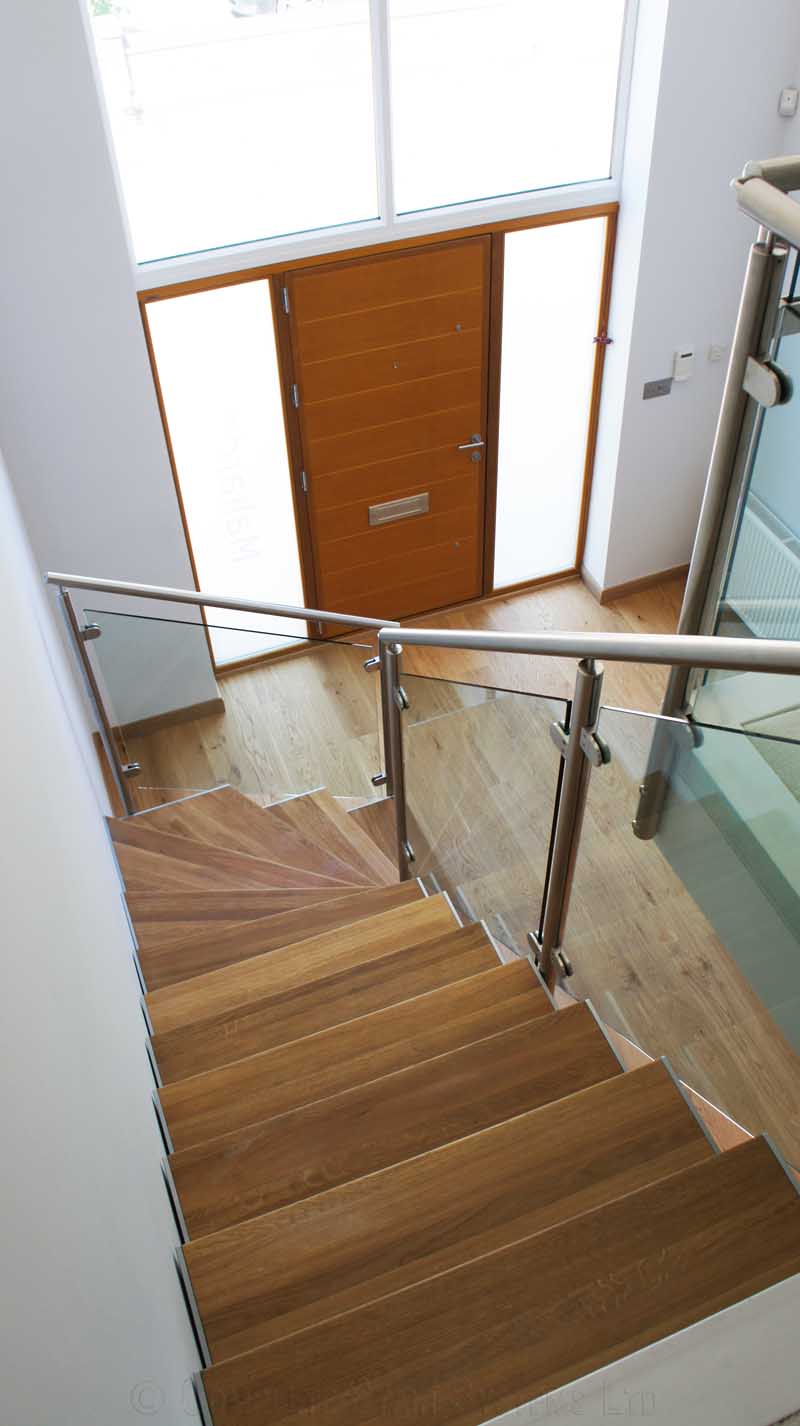

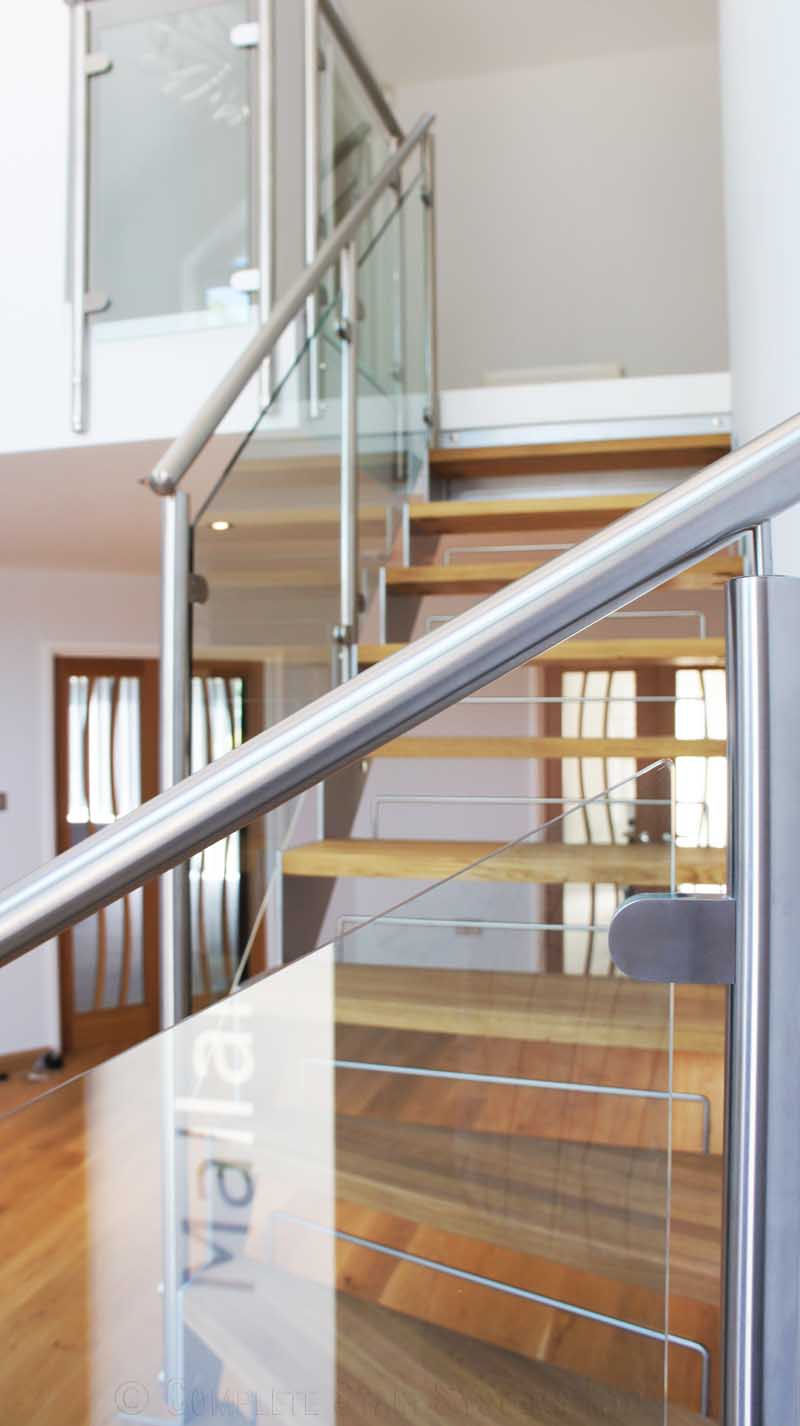

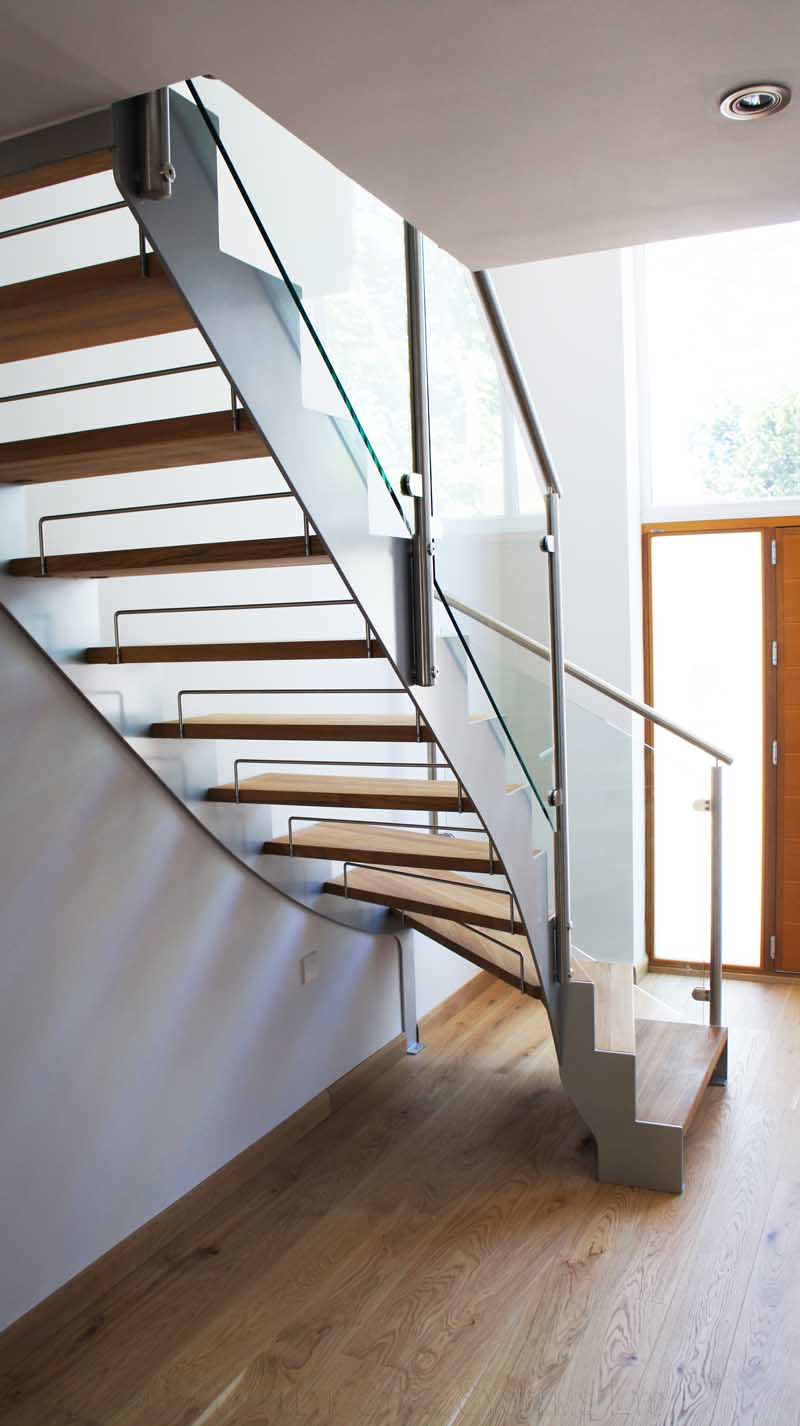

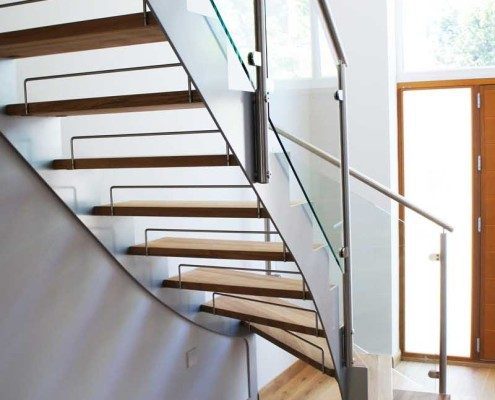

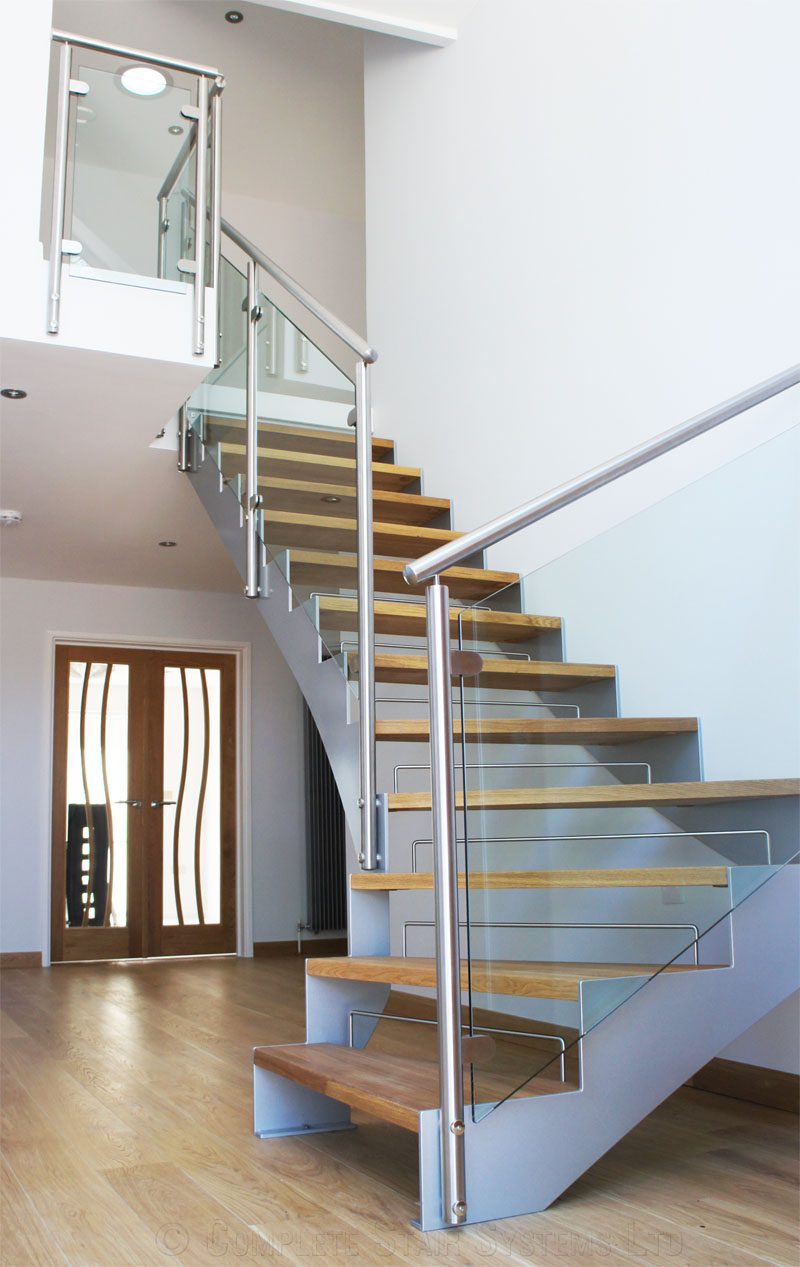

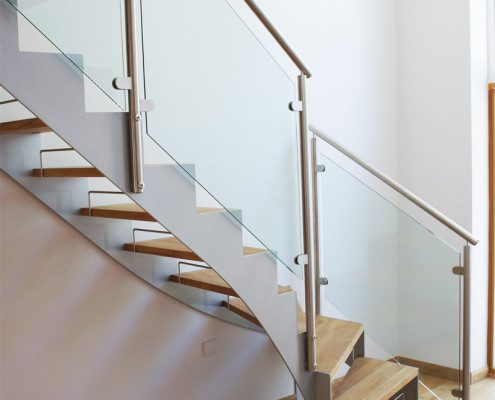

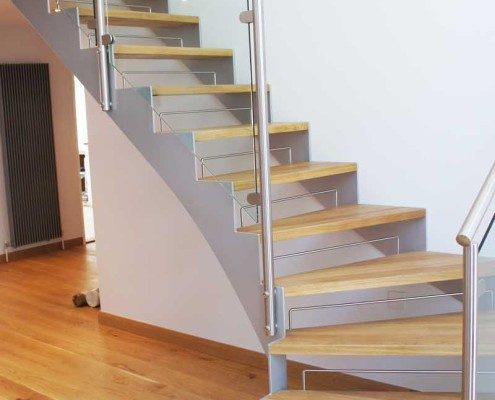

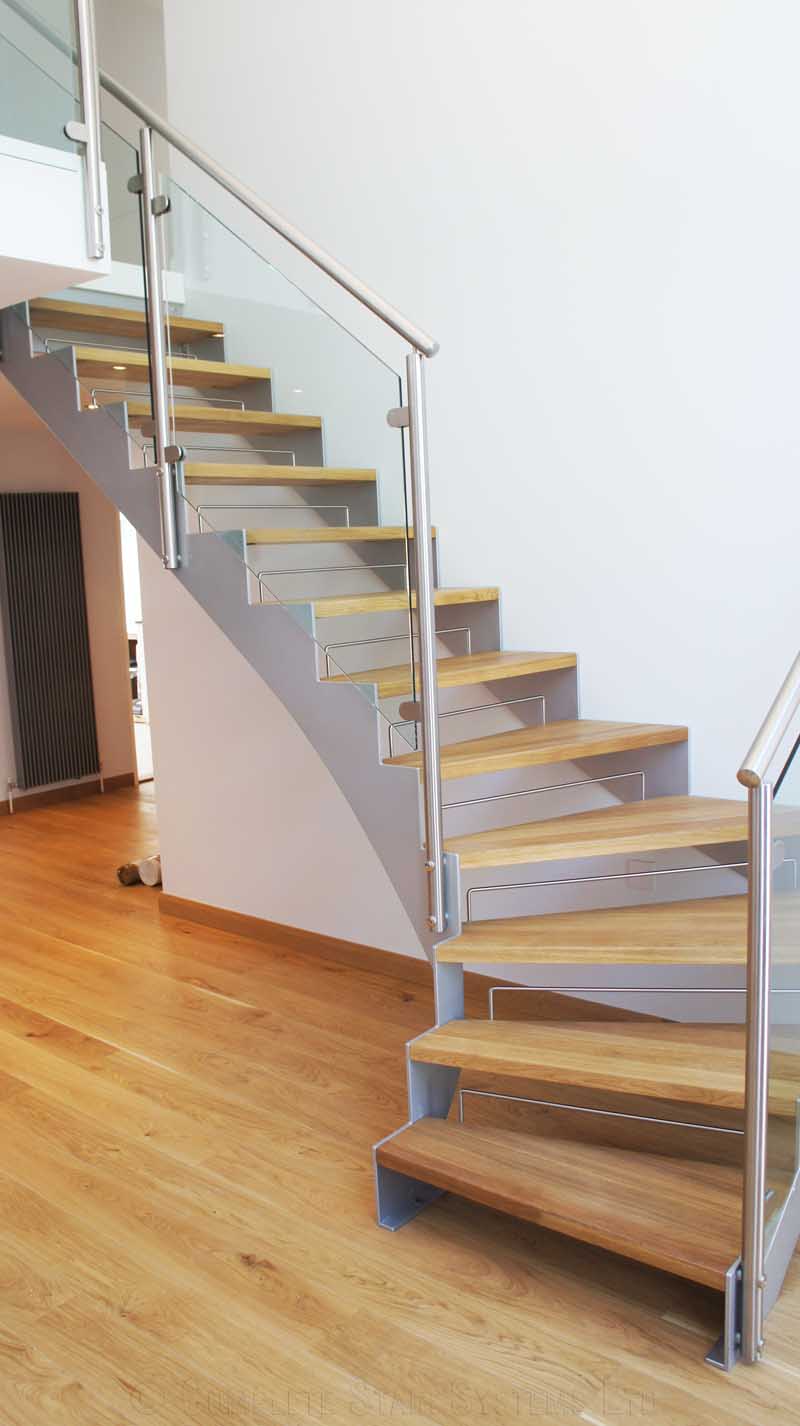

Our client was gutting his property and extending the entrance area to create a vaulted hallway and a feature staircase was required. Our client selected the model 500 bespoke staircase with glass balustrade, oak treads and steel stringers.
Quarter turn staircase
The Model 500 staircase is a modern, bespoke domestic staircase.
The structure consists of 10mm steel stringers either side of hardwood treads with newel posts or glass bolted directly into the side of the stringer. The Model 500 modern staircase can be purchased as a straight flight, quarter turn or half turn with the 90 degree and180 degree turns formed with winding treads or platforms.
The stringers to each side are laser cut to form various different shapes. A zig zag top and bottom low profile stringer is very popular, as is the flat bottom and zig zag top option. There is also the option to have a plate stringer – with a flat, straight top and bottom. These stringers are powder coated any RAL colour or supplied brushed or polished stainless steel.
Treads :-Oak, Beech, Maple, Ash, Birch, Walnut
Treads are either supplied matt varnished, oiled or stained.
To keep the flight open and light whilst adhering with the 100mm gap rule – there are the following solutions:-
- Steel Riser Bars
- L shaped treads with timber downstand
- Half glass or Acrylic Riser pieces
- Full Glass or Acrylic Risers
- Full closed risers with timber
The balustrade itself is in-filled by either :-
- Vertical Stainless Steel Spindles
- Horizontal stainless steel rails
- Framed Glass infill panels with stainless newels
- Frameless Glass Panels bolted directly to the side of the stringer
- Perforated Steel panels with stainless newels
Each Model 500 staircase supplied is unique. The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. Each model is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.
For a price for your own ‘bespoke staircase Staines’ – please fill out the form below.
|Floor to floor height||2610mm|
|Risers||13 @ 200.7mm|
||zig zag top and flat bottom|
|Staircase Treads||40mm Oak|
|Balustrade Type||glass infill panels with Stainless Posts|

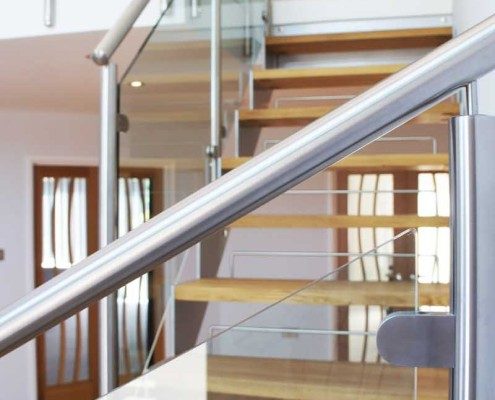

|Handrail||42.4mm Ø Stainless Steel|
||Stainless riser Bars|
|Finish of Steel||Powder Coated Pearl Grey|

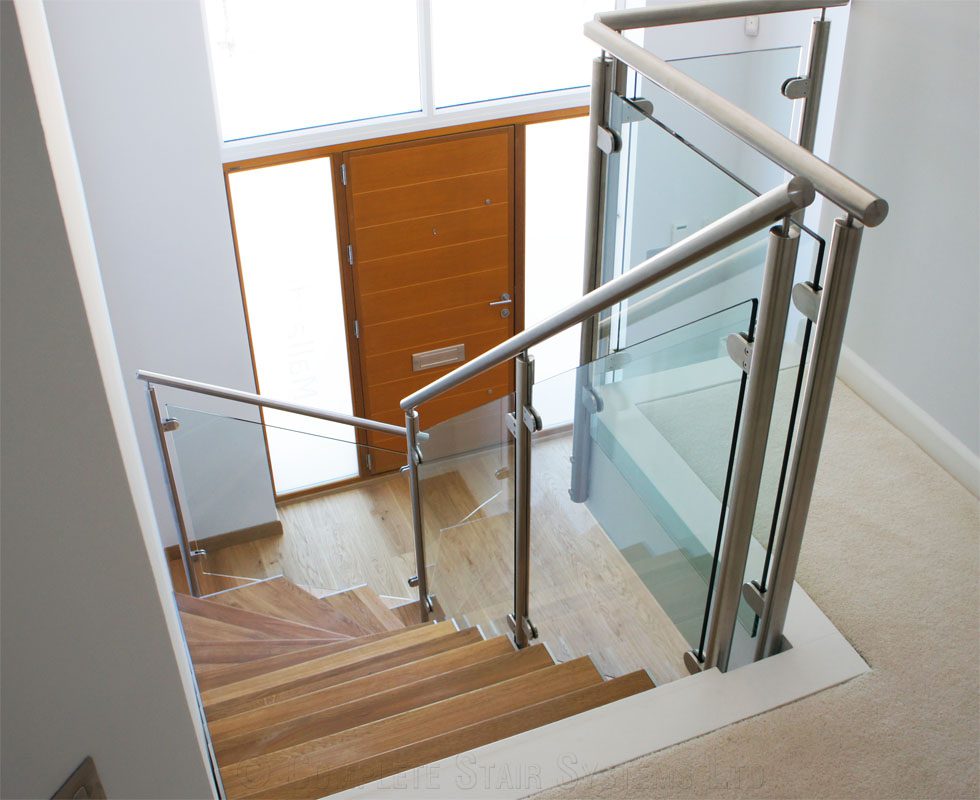

|Additional||2m matching landing balustrade|
