Bespoke Staircase Southampton

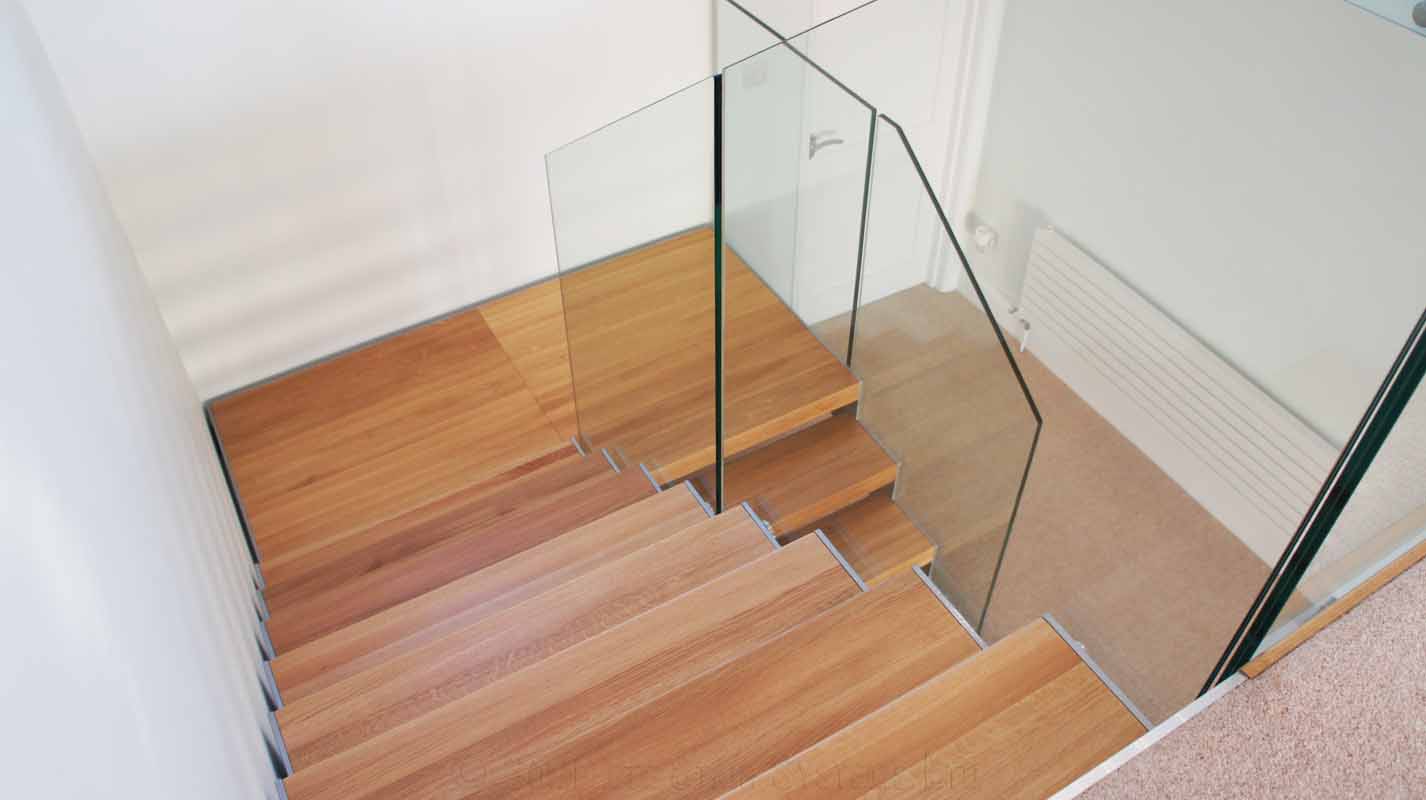

This staircase was supplied to a couple in Warsash, Southampton who were modernising their property and replacing their old staircase.  We kept the same shape to the original flight and supplied a modern stair with oak treads and glass balustrade.  It was a very shallow flight with a small step height and a generous depth and we added a larger half platform at the turn.

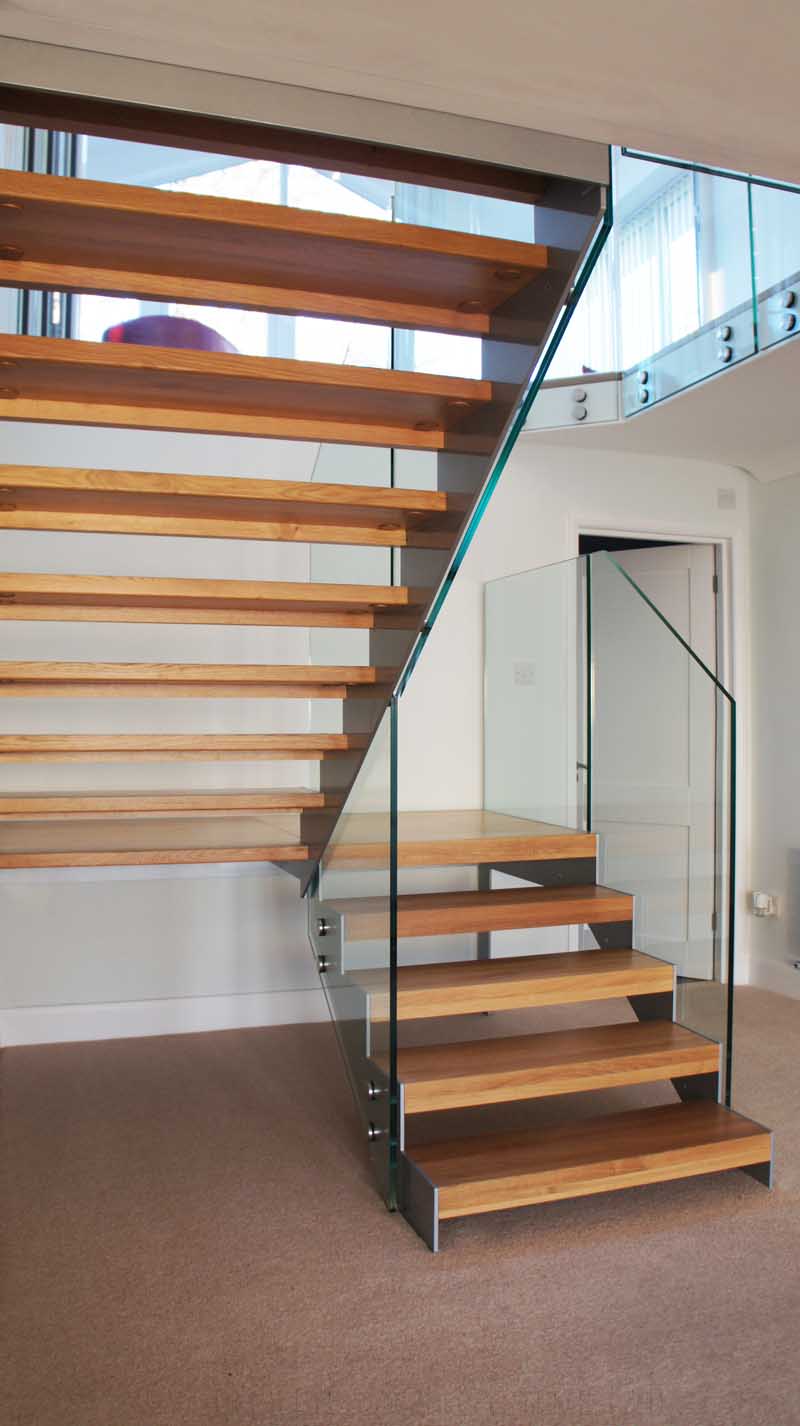

Half Turn Staircase

The Model 500 staircase is a modern, bespoke domestic staircase.

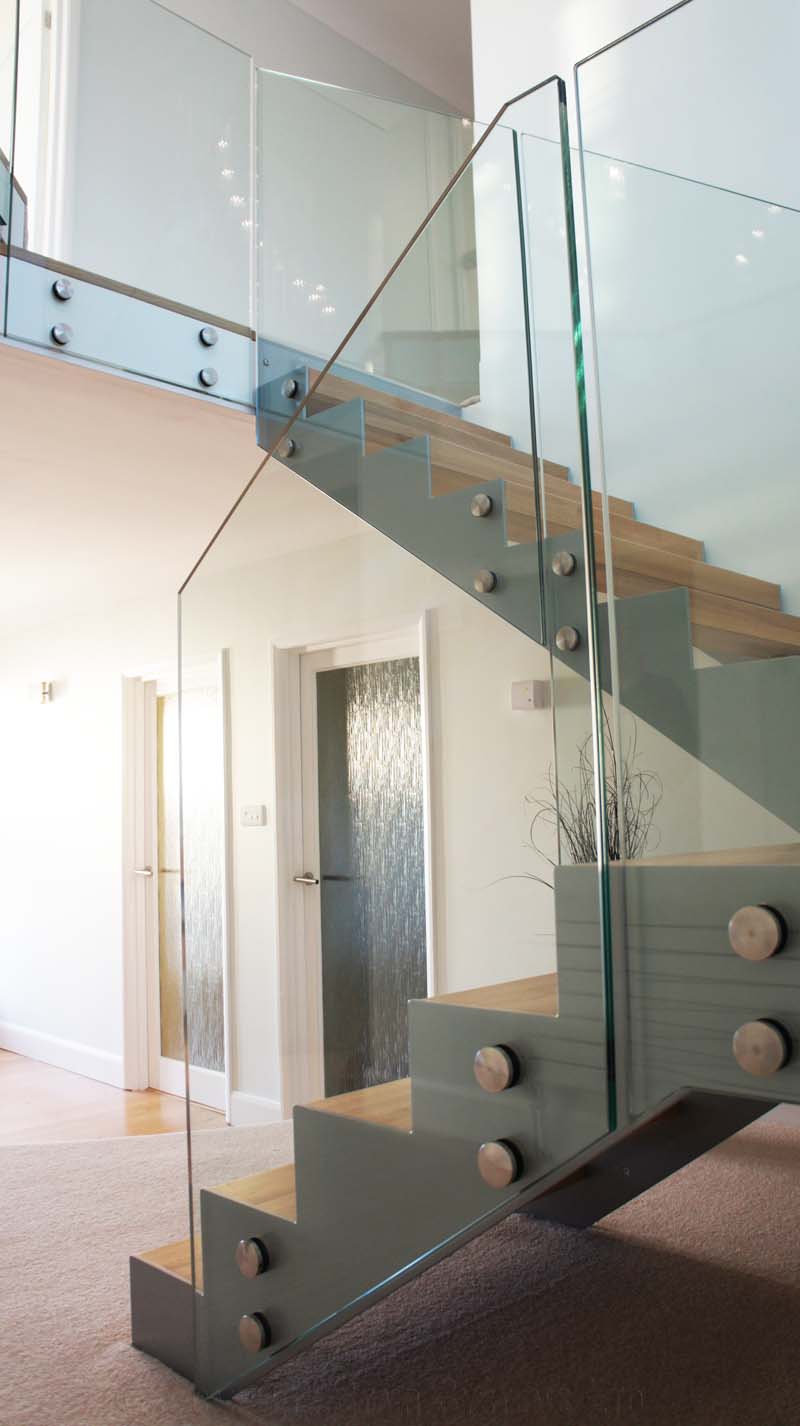

The structure consists of 10mm steel stringers either side of hardwood treads with newel posts or glass bolted directly into the side of the stringer.  The Model 500 modern staircase can be purchased as a straight flight, quarter turn or half turn with the 90 degree and180 degree turns formed with winding treads or platforms.

The stringers to each side are laser cut to form various different shapes.  A zig zag top and bottom low profile stringer is very popular, as is the flat bottom and zig zag top option.  There is also the option to have a plate stringer – with a flat, straight top and bottom.  These stringers are powder coated any RAL colour or supplied brushed or polished stainless steel.

Treads  :-Oak,Beech, Ash, Birch, Walnut

Treads are either supplied matt varnished, oiled or stained.

To keep the flight open and light whilst adhering with the 100mm gap rule  – there are the following solutions:-

  •  Steel Riser Bars
  • L shaped treads with timber downstand
  • Half glass or Acrylic Riser pieces
  • Full Glass or Acrylic Risers
  • Full closed risers with timber

The balustrade itself is in-filled by either :-

  • Vertical Stainless Steel Spindles
  • Horizontal stainless steel rails
  • Framed Glass infill panels with stainless newels
  • Frameless Glass Panels bolted directly to the side of the stringer
  • Perforated Steel panels with stainless newels

Each Model 500 staircase supplied is unique.  The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project.    Each model is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.

For a price for your own ‘Bespoke Staircase Southampton’ – please fill out the form below.

Bespoke Staircase Southampton - Technical Specifications

Floor to floor height 2610mm
Risers 13 @ 200.7mm
Staircase Width 900mm
Staircase Stringers
zig zag top and flat bottom
Staircase Treads 40mm Oak

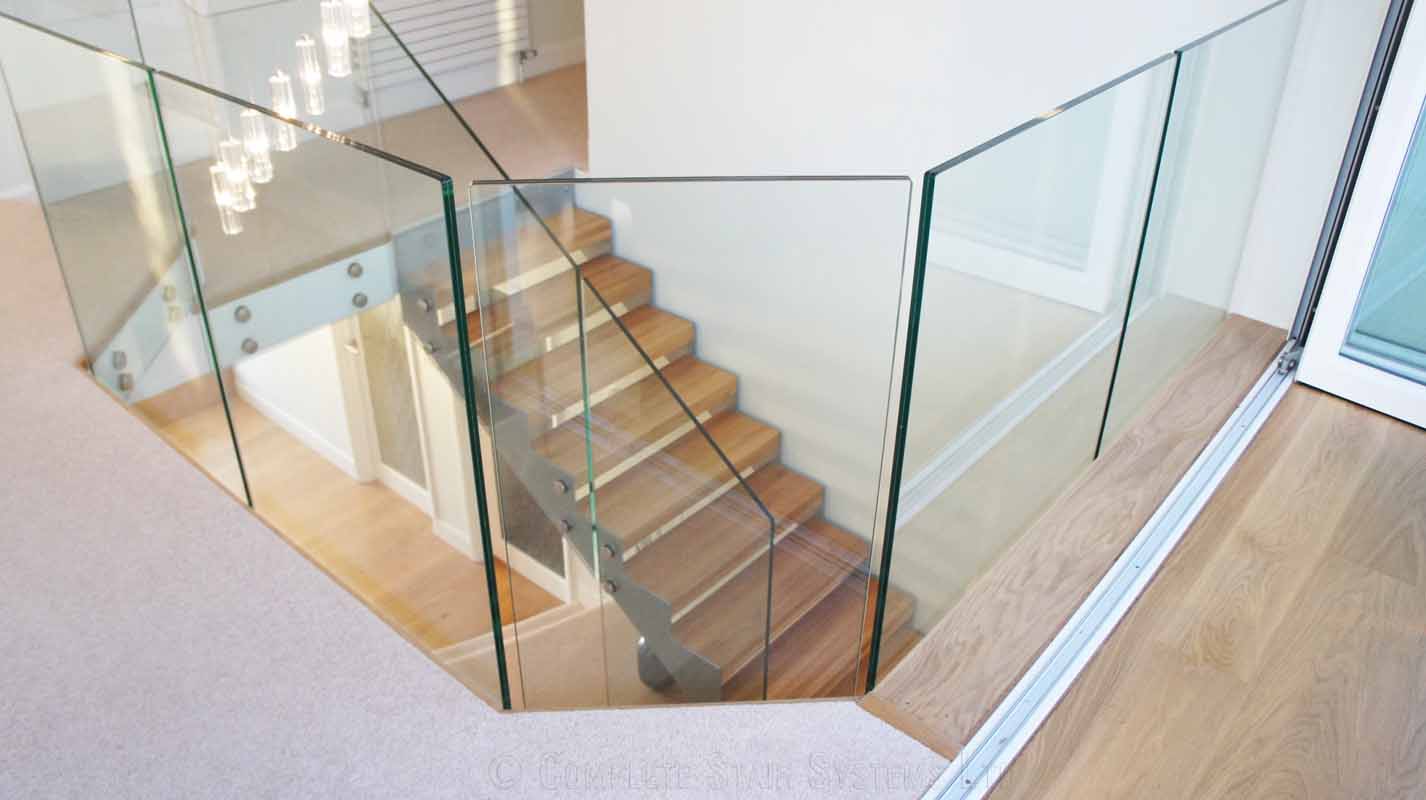

Balustrade Type Frameless Glass Panels
Handrail N/A
Riser Infill
L shaped treads
Finish of Steel Powder Coated

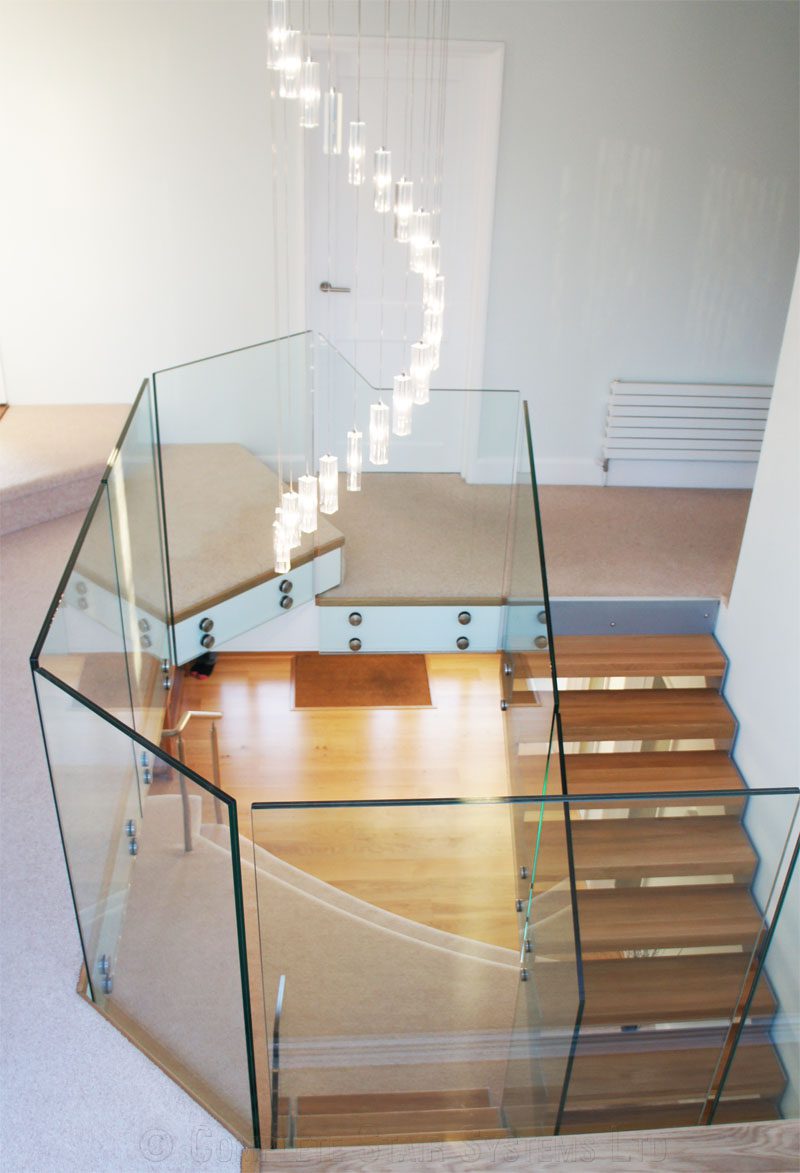

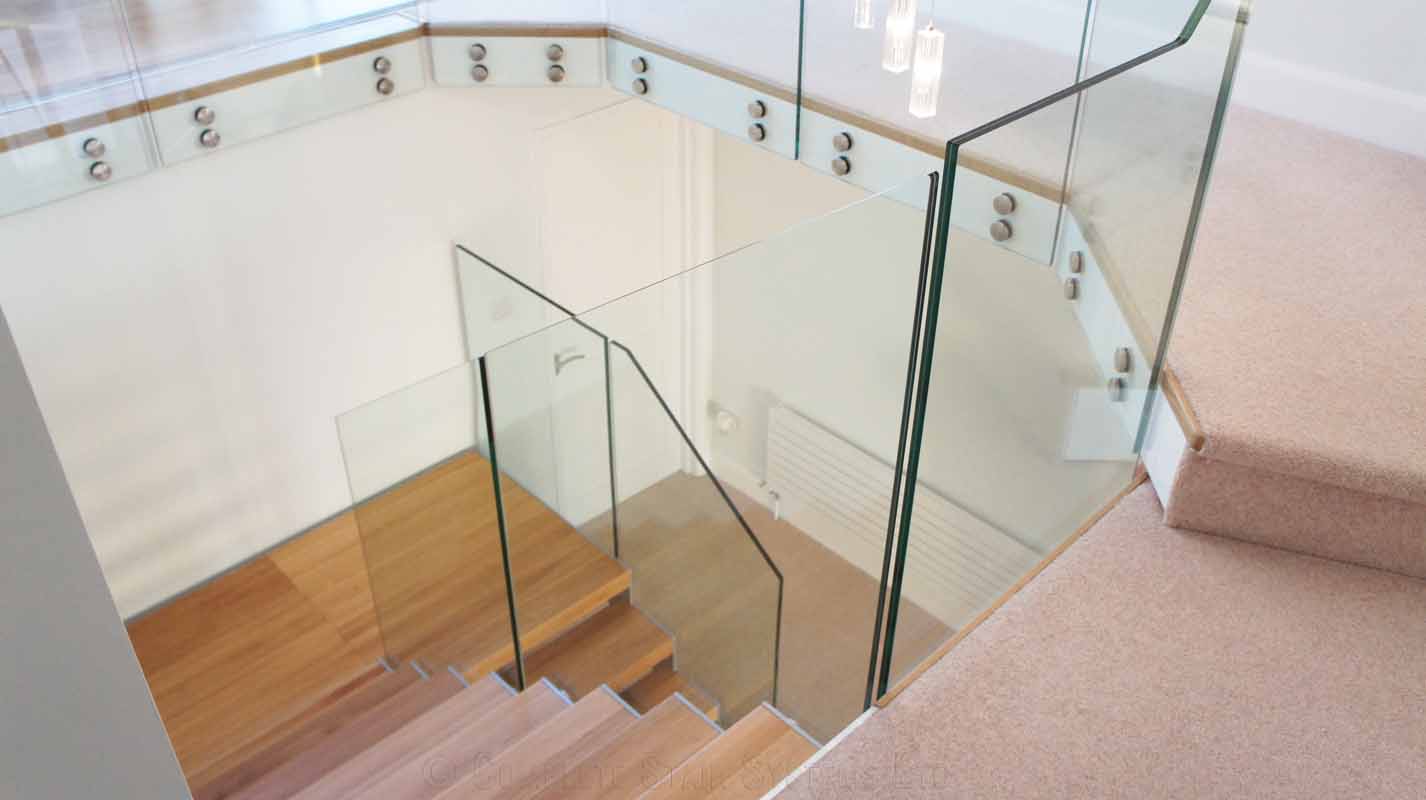

Additional 6m matching landing balustrade

Contact us about project Bespoke Staircase - Southampton
