Bespoke Staircase Romsey

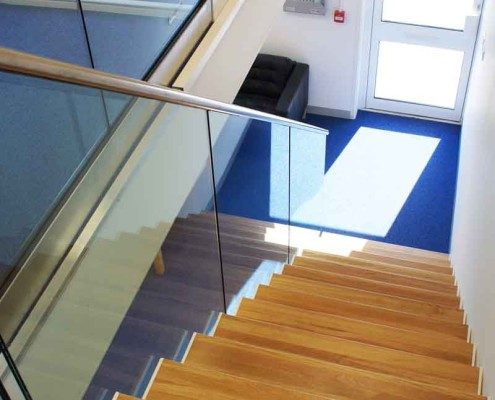

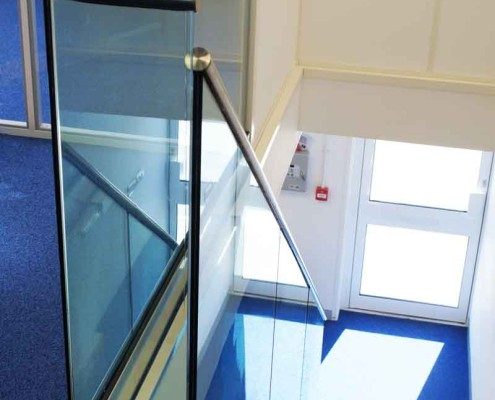

This staircase is actually part of our own office fit out completed when we moved in during 2012.  As the model 500 stair is one of our most popular flight we selected this as the main staircase in the office.  As it was for semi commercial use we ensured the width was sufficient and the depth of each staircase complied with the regulations.  We chose 50mm Oak treads with a small downstand and frameless glass down one side.  This staircase is obviously available to view so please call to book an appointment.

Office Staircase

The Model 500 staircase is a modern, bespoke domestic staircase.

The structure consists of 10mm steel stringers either side of hardwood treads with newel posts or glass bolted directly into the side of the stringer.  The Model 500 modern staircase can be purchased as a straight flight, quarter turn or half turn with the 90 degree and180 degree turns formed with winding treads or platforms.

The stringers to each side are laser cut to form various different shapes.  A zig zag top and bottom low profile stringer is very popular, as is the flat bottom and zig zag top option.  There is also the option to have a plate stringer – with a flat, straight top and bottom.  These stringers are powder coated any RAL colour or supplied brushed or polished stainless steel.

Treads  :-Oak,Beech, Maple, Ash, Birch,Walnut

Treads are either supplied matt varnished, oiled or stained.

To keep the flight open and light whilst adhering with the 100mm gap rule  – there are the following solutions:-

  •  Steel Riser Bars

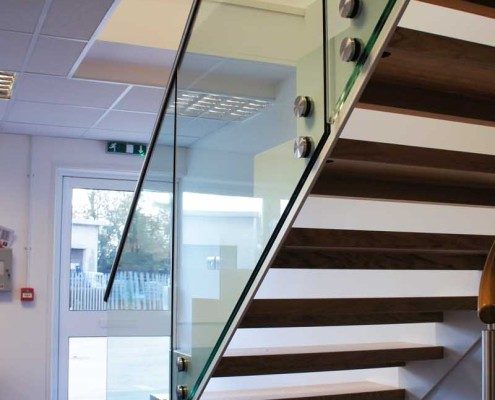

  • L shaped treads with timber downstand
  • Half glass or Acrylic Riser pieces
  • Full Glass or Acrylic Risers
  • Full closed risers with timber

The balustrade itself is in-filled by either :-

  • Vertical Stainless Steel Spindles
  • Horizontal stainless steel rails
  • Framed Glass infill panels with stainless newels

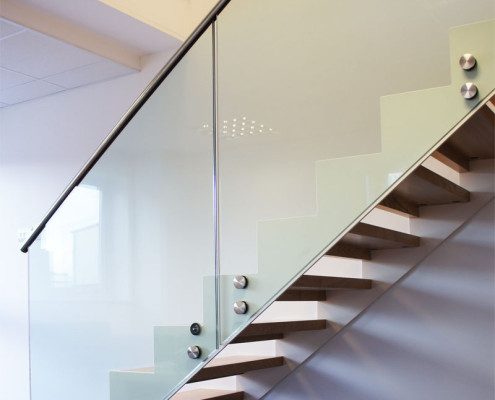

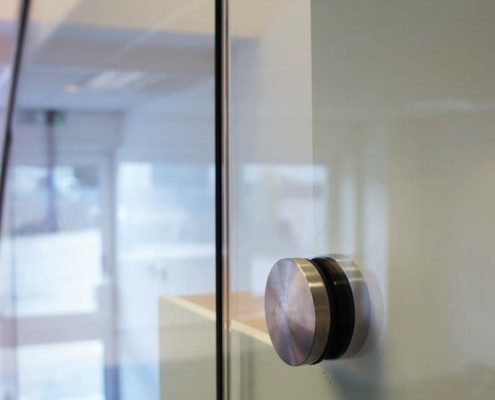

  • Frameless Glass Panels bolted directly to the side of the stringer
  • Perforated Steel panels with stainless newels

Each Model 500 staircase supplied is unique.  The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project.    Each model is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.

For a price for your own ‘Bespoke Staircase Romsey’ – please fill out the form below.

Bespoke Staircase Romsey - Technical Specifications

Floor to floor height 2610mm
Risers 13 @ 200.7mm
Staircase Width 900mm
Staircase Stringers
zig zag top and bottom
Staircase Treads 50mm Oak
Balustrade Type Frameless Glass Panels
Handrail 42.4mm Ø Stainless Steel
Riser Infill
L shaped treads
Finish of Steel Powder Coated White
Additional 2m matching landing balustrade
