Bespoke Staircase Poole

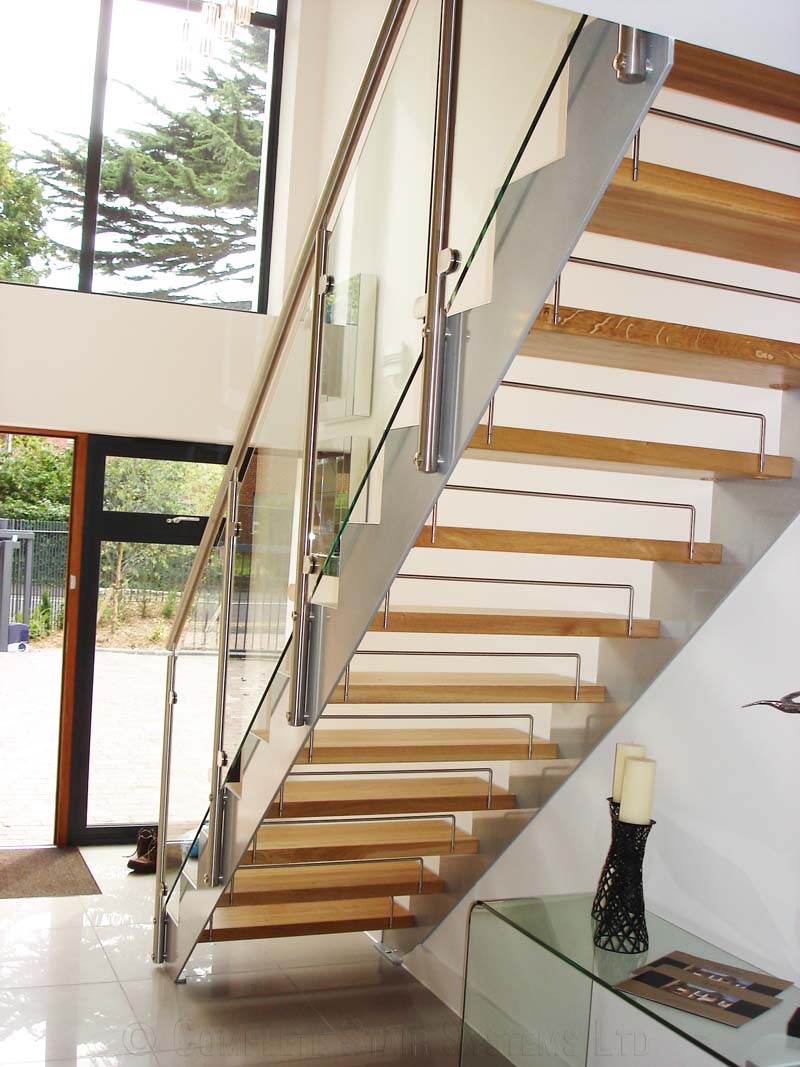

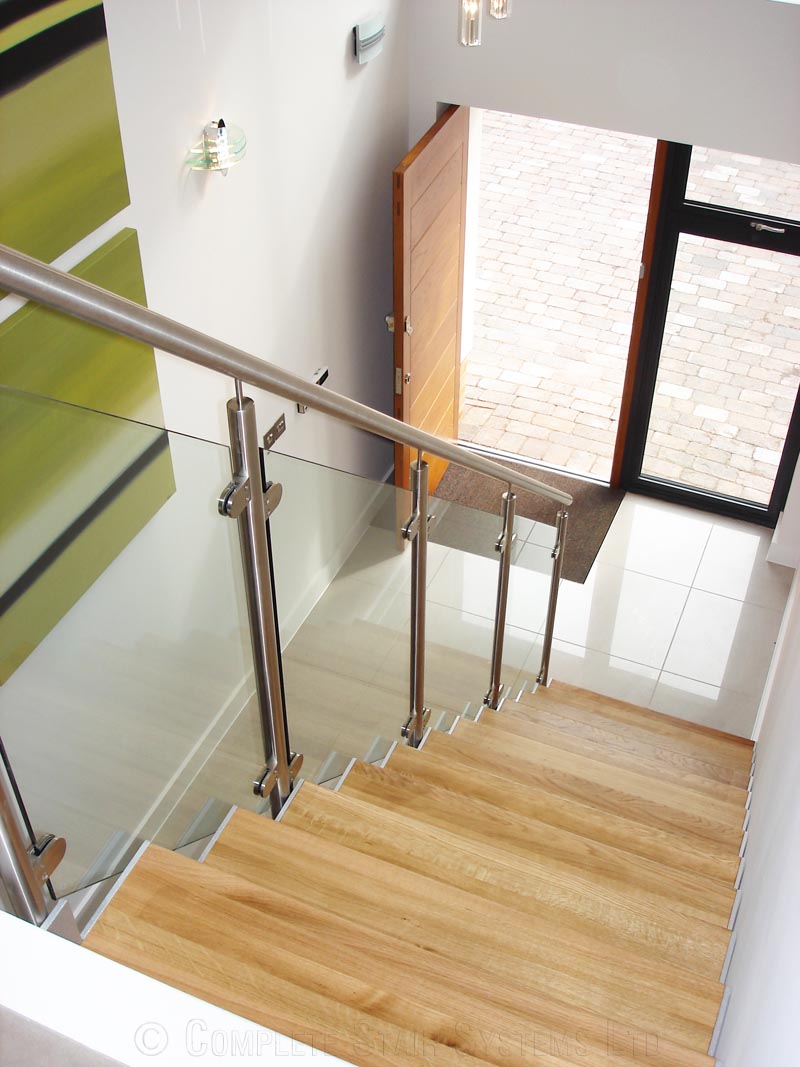

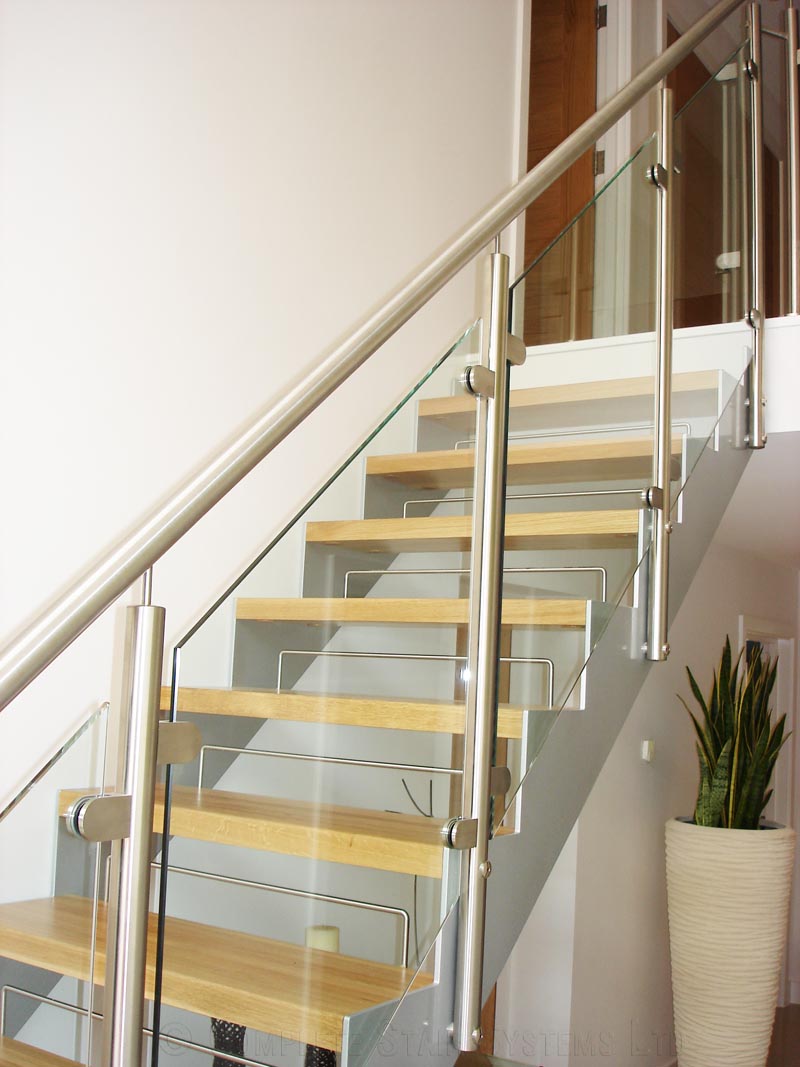

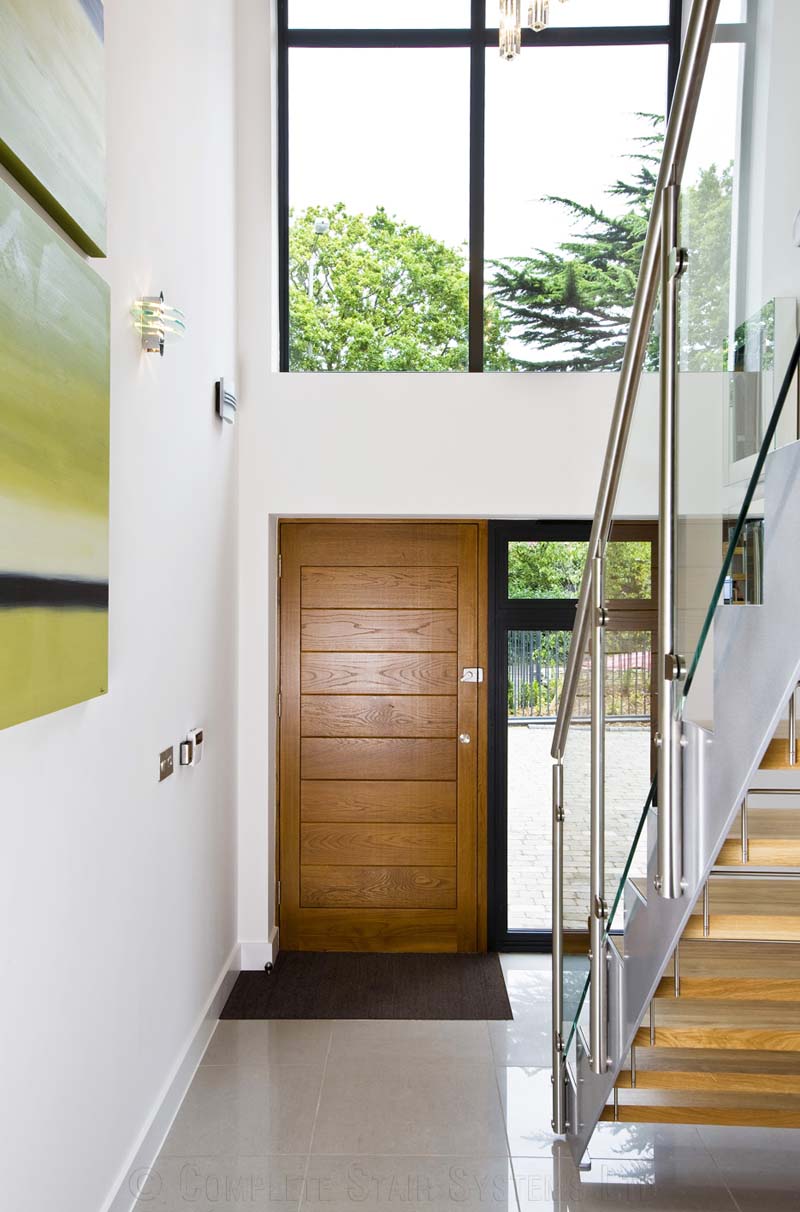

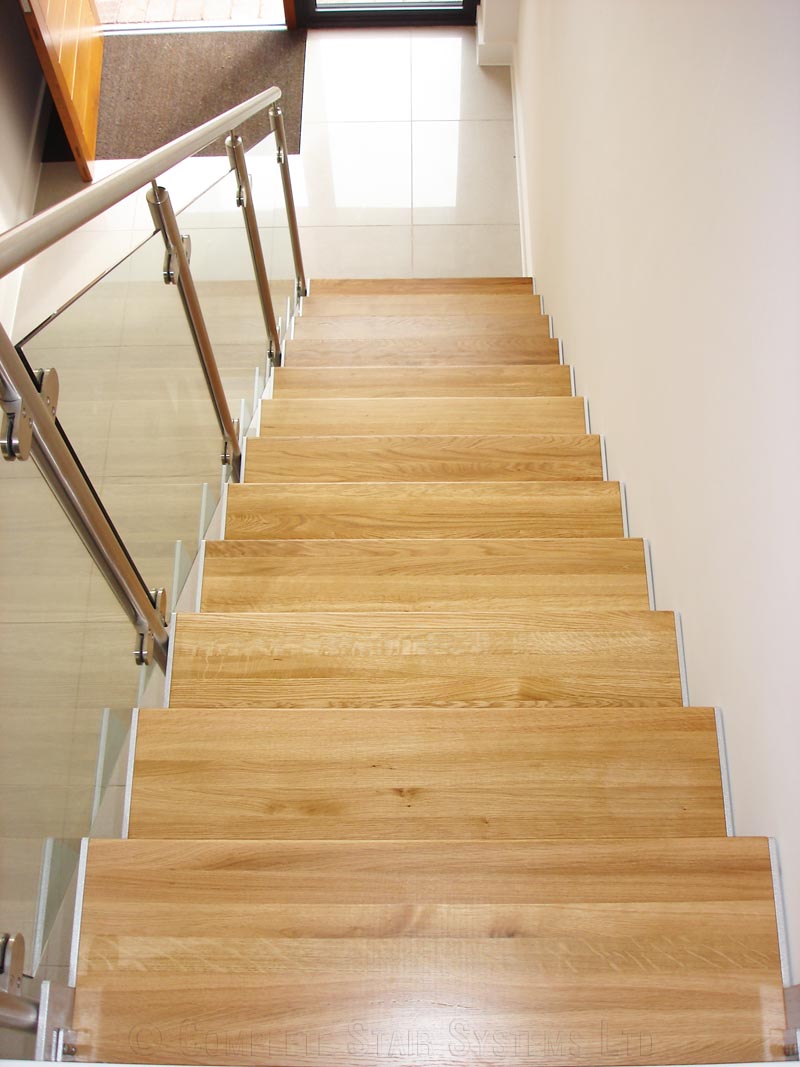

An existing client of ours was building two new properties in the exclusive Sandbanks area of Poole.  The new homes were built side by side  and two modern straight flight staircases were required to become focal points of the grand entrance halls.  Our client has previously purchased the model 500 staircase for their new build and again choose this model.  Solid oak treads spanned between steel stringers and glass balustrade was situated down one side of the staircase.

Sandbanks Staircase

The Model 500 staircase is a modern, bespoke domestic staircase.

The structure consists of 10mm steel stringers either side of hardwood treads with newel posts or glass bolted directly into the side of the stringer. The Model 500 modern staircase can be purchased as a straight flight, quarter turn or half turn with the 90 degree and180 degree turns formed with winding treads or platforms.

The stringers to each side are laser cut to form various different shapes. A zig zag top and bottom low profile stringer is very popular, as is the flat bottom and zig zag top option. There is also the option to have a plate stringer – with a flat, straight top and bottom. These stringers are powder coated any RAL colour or supplied brushed or polished stainless steel.

Treads :-Oak, Beech, Maple, Ash, Birch, Walnut

Treads are either supplied matt varnished, oiled or stained.

To keep the flight open and light whilst adhering with the 100mm gap rule – there are the following solutions:-

· Steel Riser Bars
· L shaped treads with timber downstand
· Half glass or Acrylic Riser pieces
· Full Glass or Acrylic Risers
· Full closed risers with timber

The balustrade itself is in-filled by either :-

Vertical Stainless Steel Spindles
Horizontal stainless steel rails
Framed Glass infill panels with stainless newels
Frameless Glass Panels bolted directly to the side of the stringer
Perforated Steel panels with stainless newels

Each Model 500 staircase supplied is unique. The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. Each model is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.

For a price for your own Bespoke Staircase Poole – please fill out the form below.

Bespoke Staircase Poole - Technical Specifications

Floor to floor height 2610mm
Risers 13 @ 200.7mm
Staircase Width 900mm
Staircase Stringers
Zig- Zag top and flat bottom
Staircase Treads 50mm Oak
Balustrade Type glass infill panels with Stainless Posts
Handrail 42.4mm Ø Stainless Steel
Riser Infill
Stainless riser Bars
Finish of Steel Powder Coated Pearl Grey
Additional 2m matching landing balustrade
