Bespoke Staircase Hertfordshire

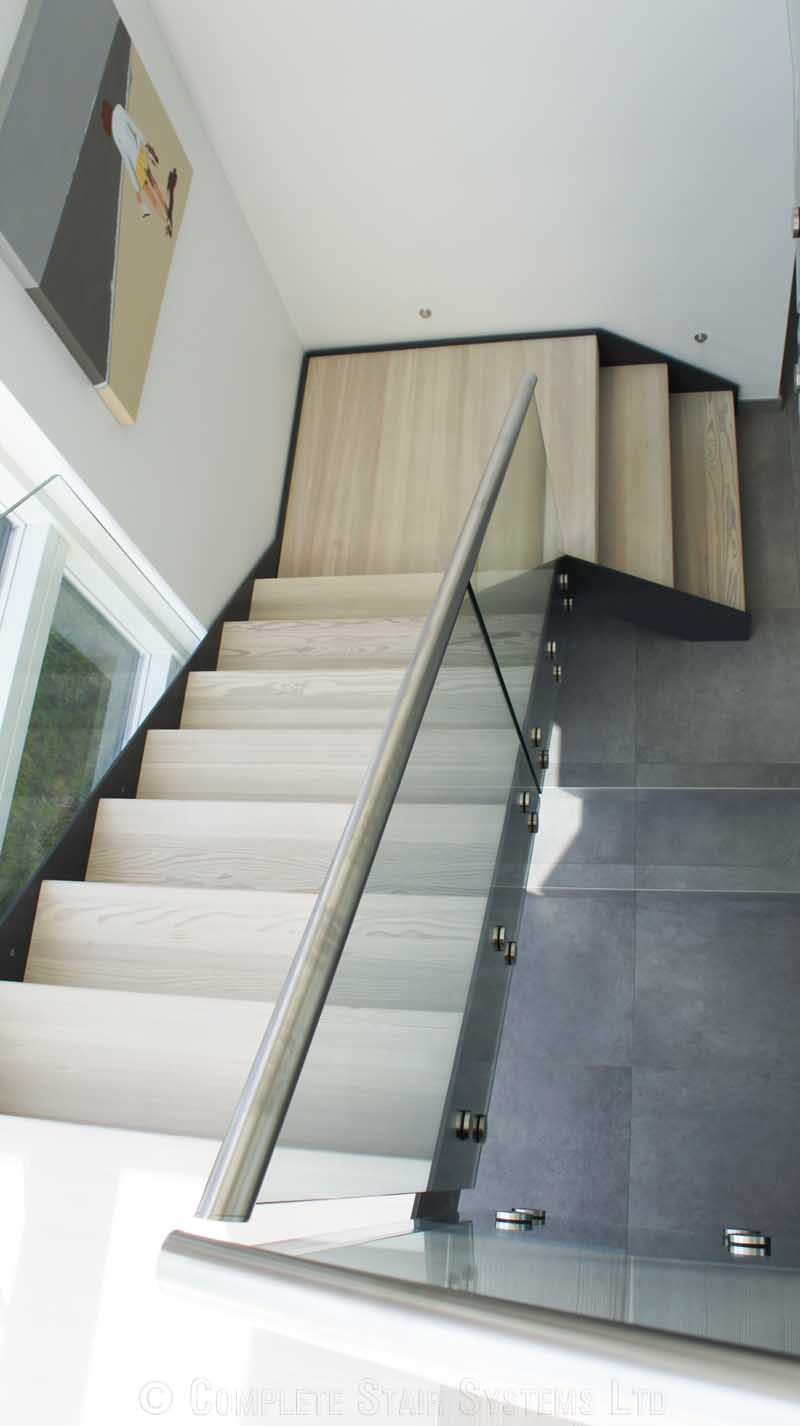

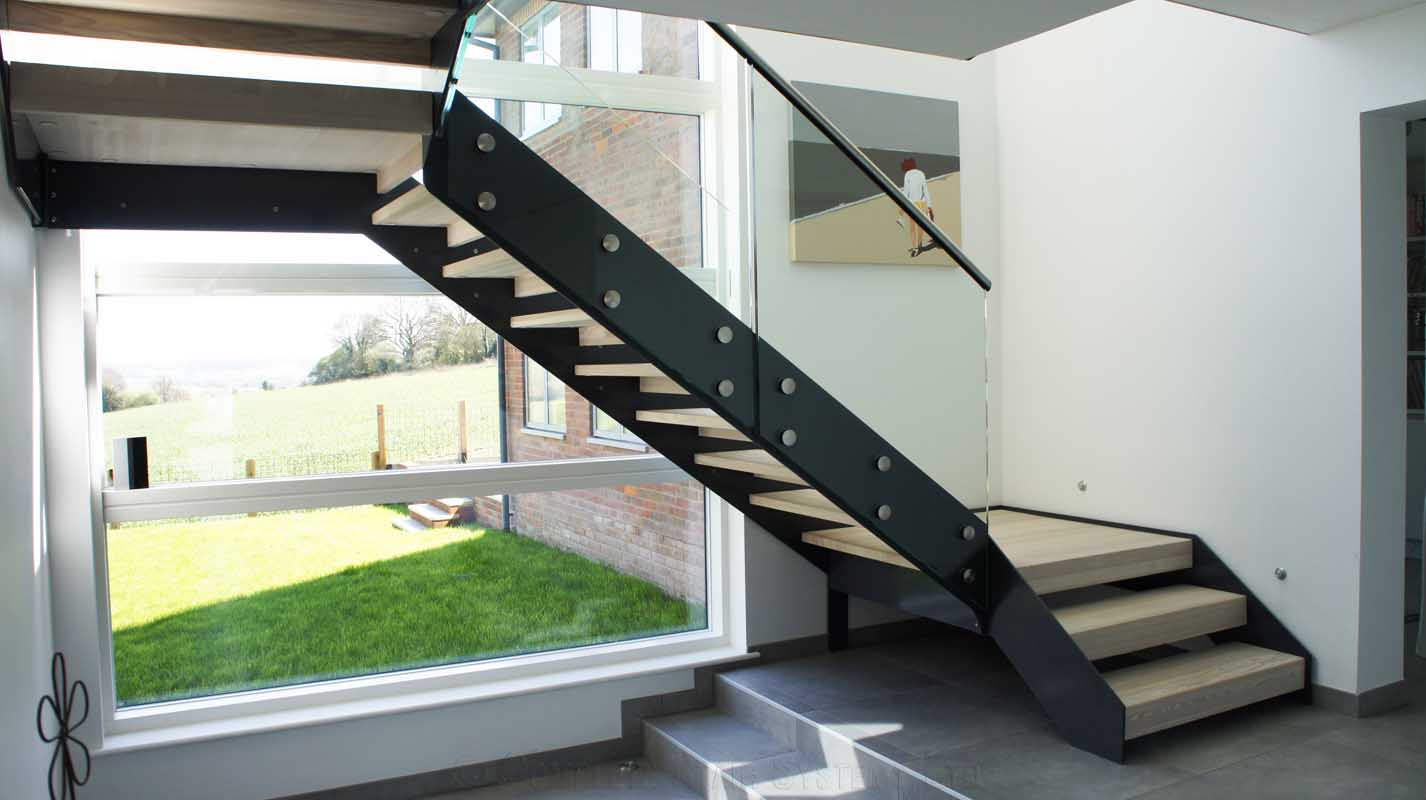

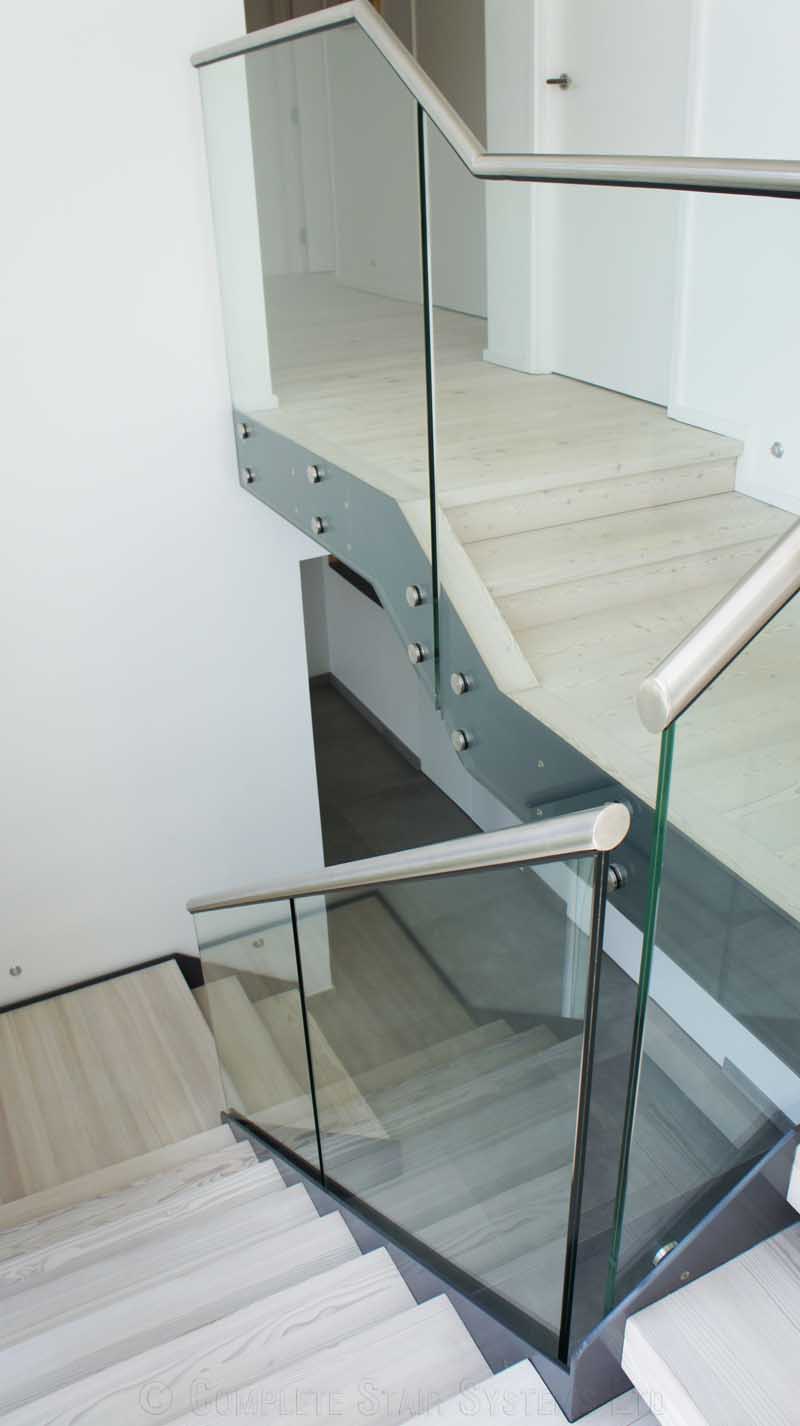

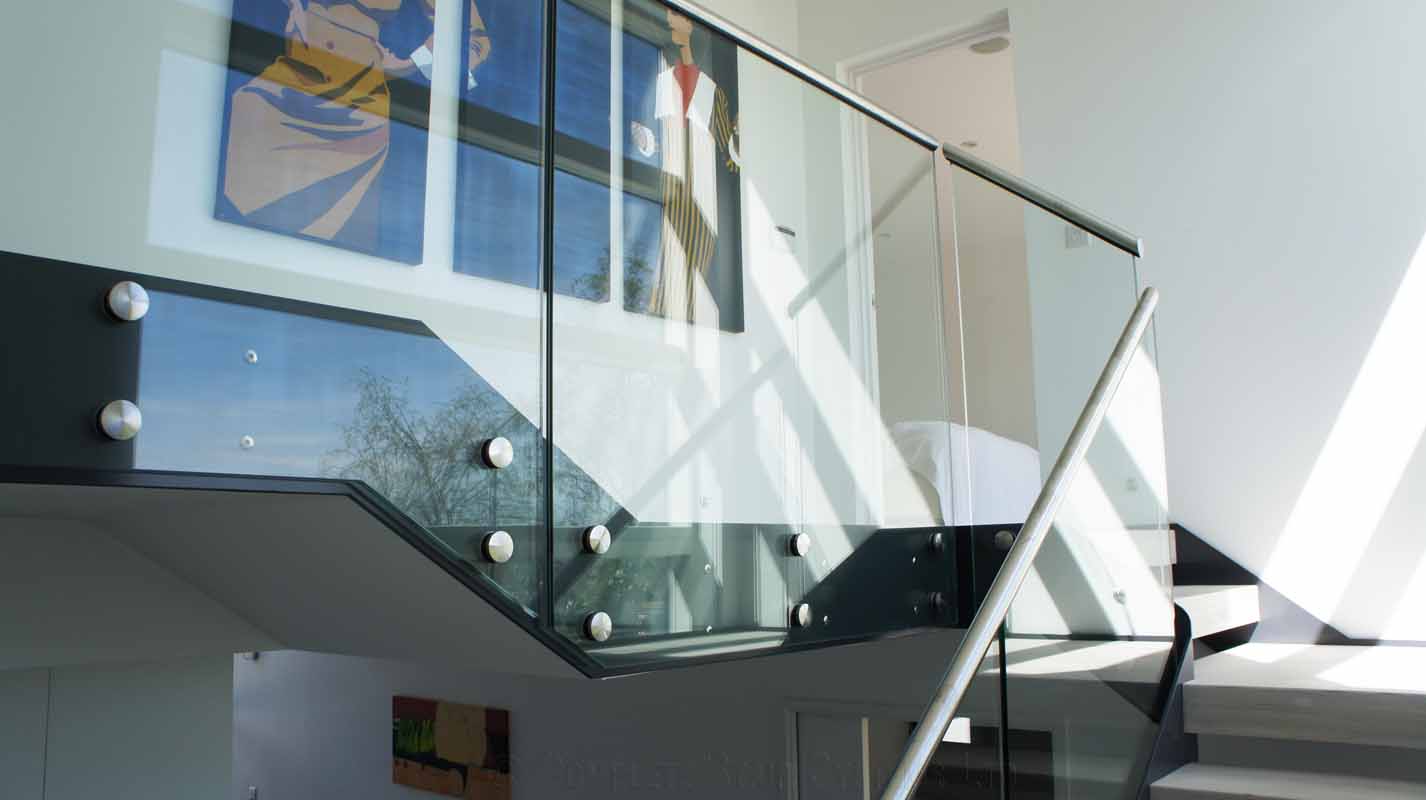

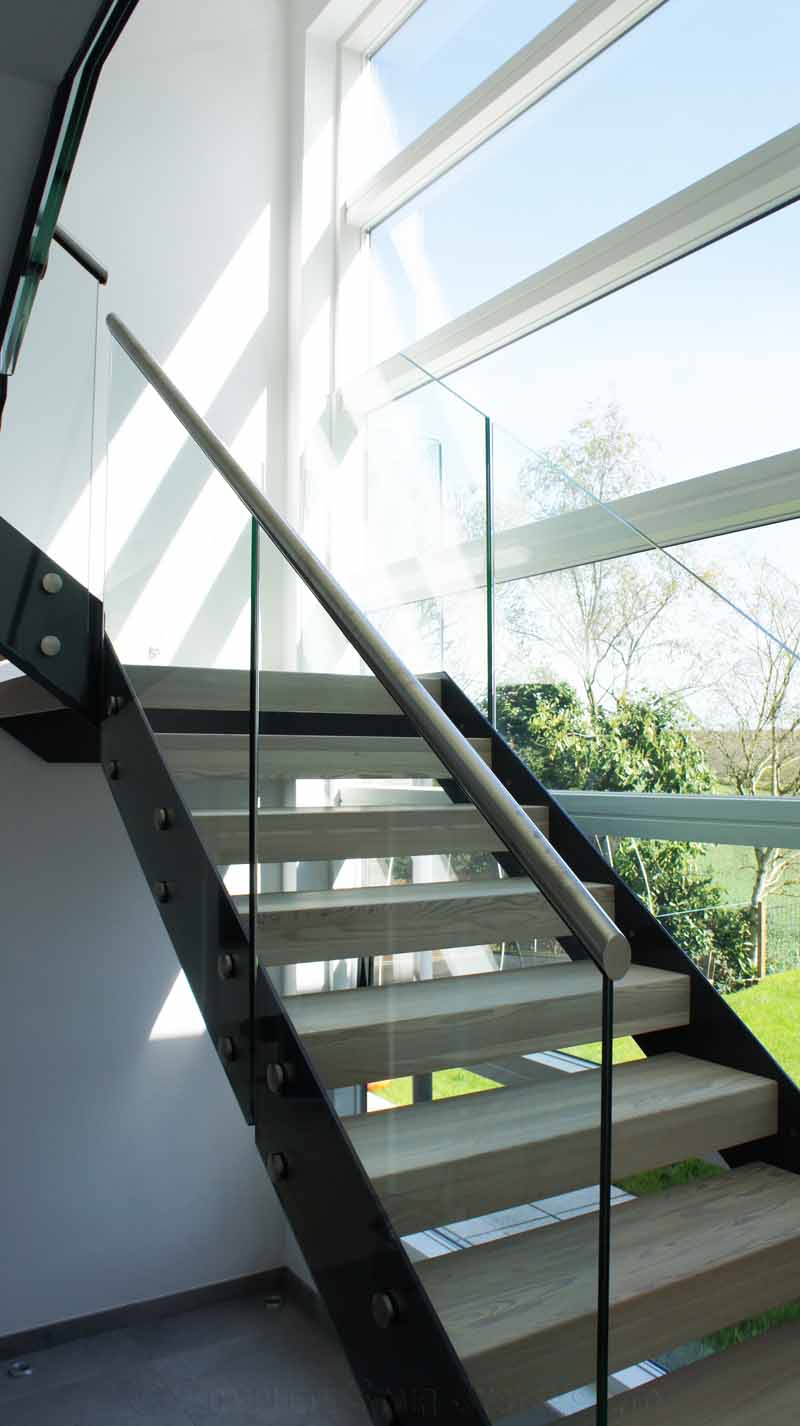

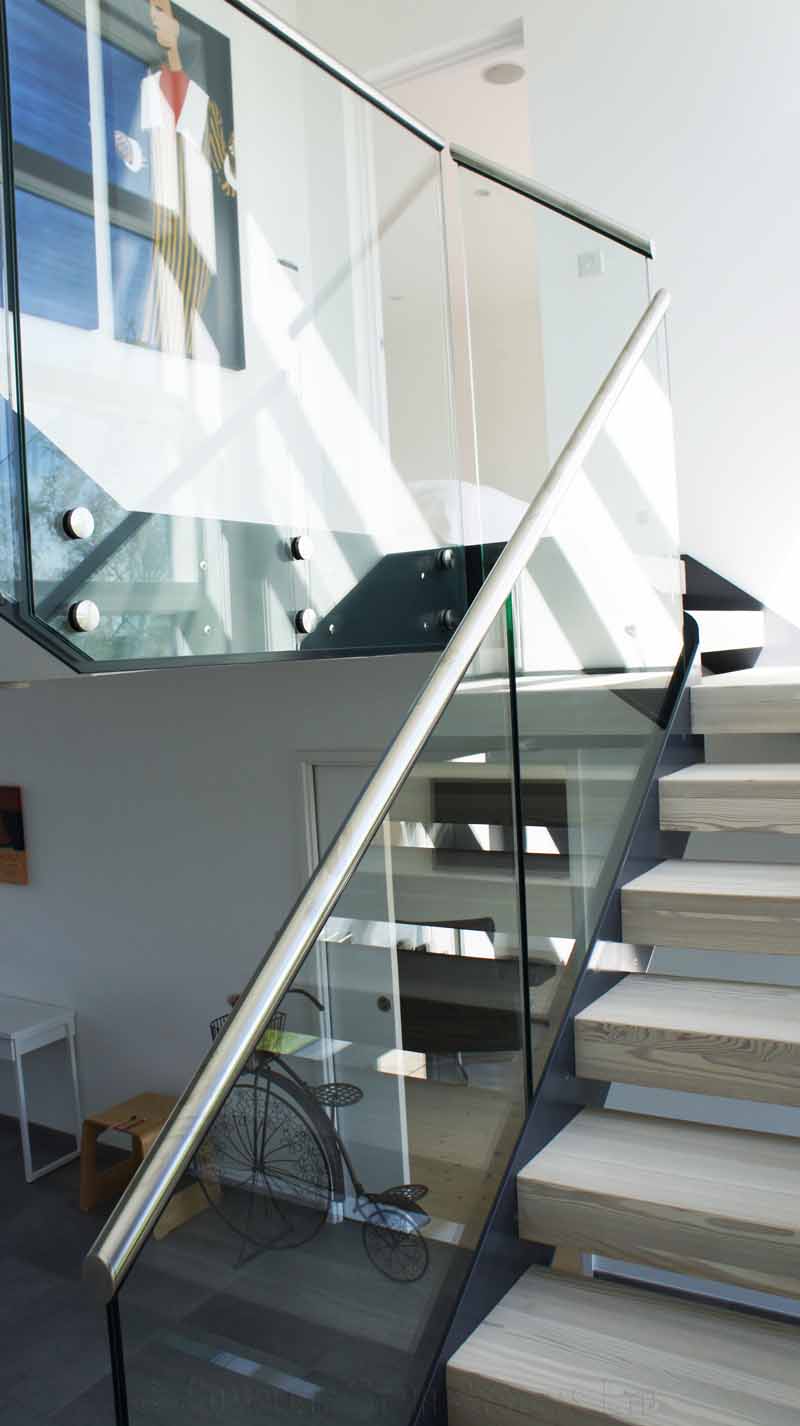

Our client was involved in a new build in Berkhamstead in Hertfordshire.  The huge hallway required a large feature staircase in proportion with the surroundings.  Our client had a specially ‘limed’ timber floor upstairs and the treads we supplied ‘RAW’ and delivered them to the same company that finished their flooring.  As there was a large window to the rear of the stairwell, passage of light was key, so open risers were a must along with glass balustrade to the side of the stair.  The steel stringers were powder coated to match the door frames throughout the property and matching landing balustrade was supplied upstairs.

New Build Staircase

The Model 500 staircase is a modern, bespoke domestic staircase.

The structure consists of 10mm steel stringers either side of hardwood treads with newel posts or glass bolted directly into the side of the stringer. The Model 500 modern staircase can be purchased as a straight flight, quarter turn or half turn with the 90 degree and180 degree turns formed with winding treads or platforms.

The stringers to each side are laser cut to form various different shapes. A zig zag top and bottom low profile stringer is very popular, as is the flat bottom and zig zag top option. There is also the option to have a plate stringer – with a flat, straight top and bottom. These stringers are powder coated any RAL colour or supplied brushed or polished stainless steel.

Treads :-Oak, Beech, Maple, Ash, Birch, Walnut

Treads are either supplied matt varnished, oiled or stained.

To keep the flight open and light whilst adhering with the 100mm gap rule – there are the following solutions:-

· Steel Riser Bars
· L shaped treads with timber downstand
· Half glass or Acrylic Riser pieces
· Full Glass or Acrylic Risers
· Full closed risers with timber

The balustrade itself is in-filled by either :-

Vertical Stainless Steel Spindles
Horizontal stainless steel rails
Framed Glass infill panels with stainless newels
Frameless Glass Panels bolted directly to the side of the stringer
Perforated Steel panels with stainless newels

Each Model 500 staircase supplied is unique. The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project. Each model is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.

For a price for your own ‘Bespoke Staircase Hertforshire’ – please fill out the form below.

Bespoke Staircase Hertfordshire- Technical Specifications

Floor to floor height 3310mm
Risers 16 @ 206.8mm
Staircase Width 1000mm
Staircase Stringers
flat top and bottom
Staircase Treads 40mm Oak
Balustrade Type Frame-less Glass Panels
Handrail 42.4mm Ø Stainless Steel
Riser Infill
L shaped treads
Finish of Steel Powder Coated
Additional 3m matching landing balustrade
