Bespoke Staircase Haslemere

This straight flight staircase was supplied to a family in Haslemere, Surrey who were refurbishing their property.  The staircase was being relocated and a new opening in the floor was being created for the straight flight we supplied.  The customer selected solid timber treads, glass balustrade and glass risers to reduce the gap between the steps.

Replacement Staircase

The Model 500 staircase is a modern, bespoke domestic staircase.

The structure consists of 10mm steel stringers either side of hardwood treads with newel posts or glass bolted directly into the side of the stringer.  The Model 500 modern staircase can be purchased as a straight flight, quarter turn or half turn with the 90 degree and180 degree turns formed with winding treads or platforms.

The stringers to each side are laser cut to form various different shapes.  A zig zag top and bottom low profile stringer is very popular, as is the flat bottom and zig zag top option.  There is also the option to have a plate stringer – with a flat, straight top and bottom.  These stringers are powder coated any RAL colour or supplied brushed or polished stainless steel.

Treads  :-Oak, Beech, Maple, Ash, Birch, Walnut

Treads are either supplied matt varnished, oiled or stained.

To keep the flight open and light whilst adhering with the 100mm gap rule  – there are the following solutions:-

  • L shaped treads with timber downstand
  • Steel Riser Bars
  • Half glass or Acrylic Riser pieces
  • Full Glass or Acrylic Risers
  • Full closed risers with timber

The balustrade itself is in-filled by either :-

  • Vertical Stainless Steel Spindles
  • Horizontal stainless steel rails
  • Framed Glass infill panels with stainless newels

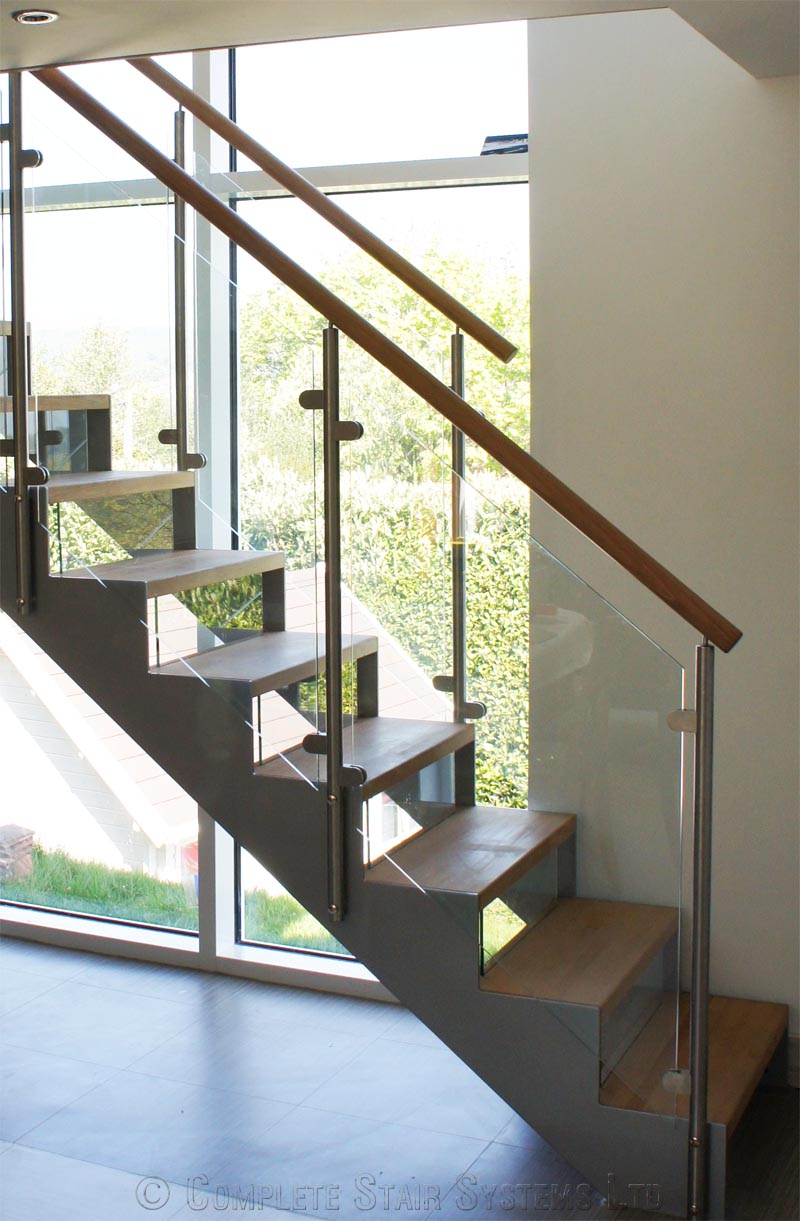

  • Frameless Glass Panels bolted directly to the side of the stringer
  • Perforated Steel panels with stainless newels

Each Model 500 staircase supplied is unique.  The riser height, pitch angle and going depth are created specifically to suit the opening, staircase configuration and floor to floor height of the project.    Each model is ‘dry’ fitted in the factory before dispatch to ensure all parts fit together.

For a price for your own ‘Bespoke Staircase Haslemere’ – please fill out the form below.

Bespoke Staircase Haslemere- Technical Specifications

Floor to floor height 2610mm
Risers 13 @ 200.7mm
Staircase Width 900mm
Staircase Stringers

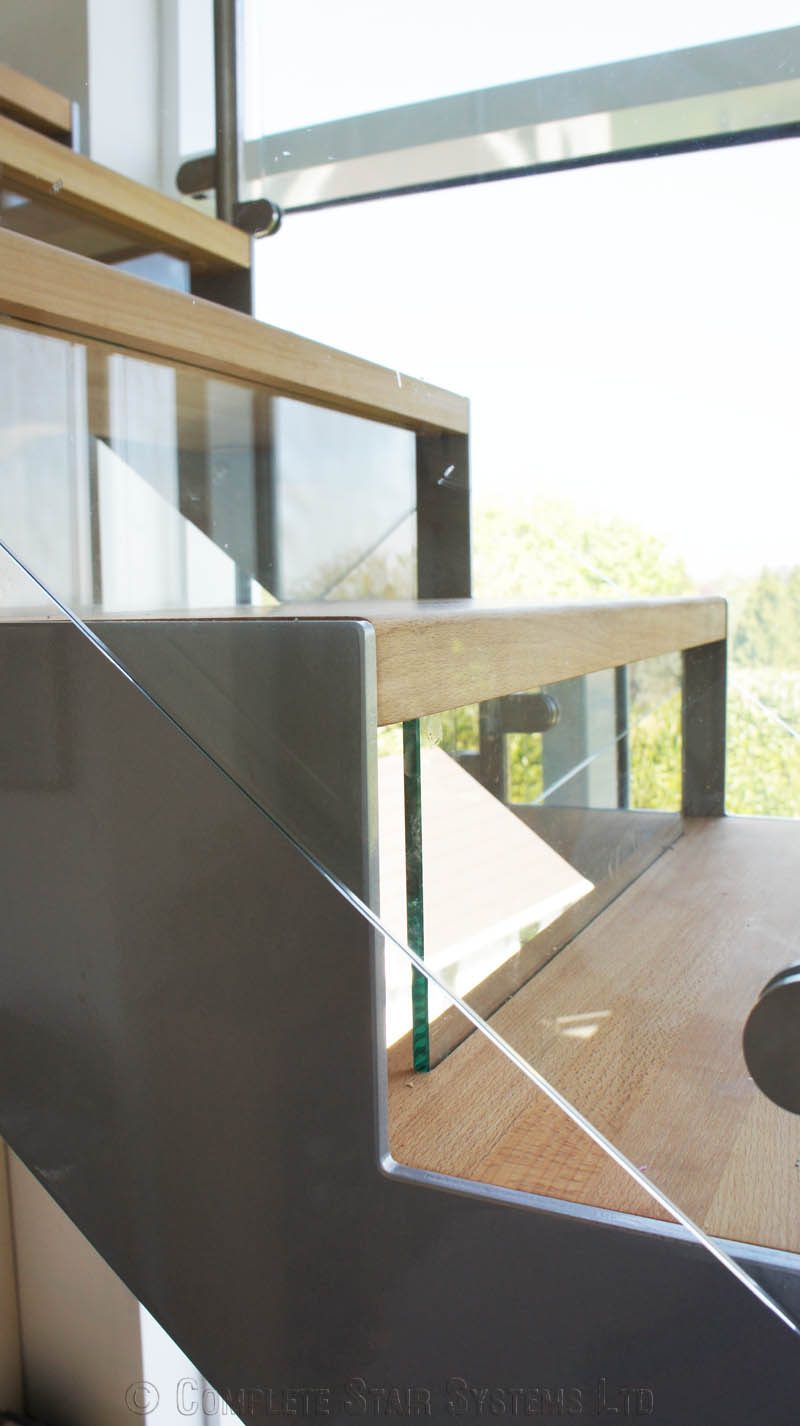

zig zag top and bottom
Staircase Treads 40mm Beech

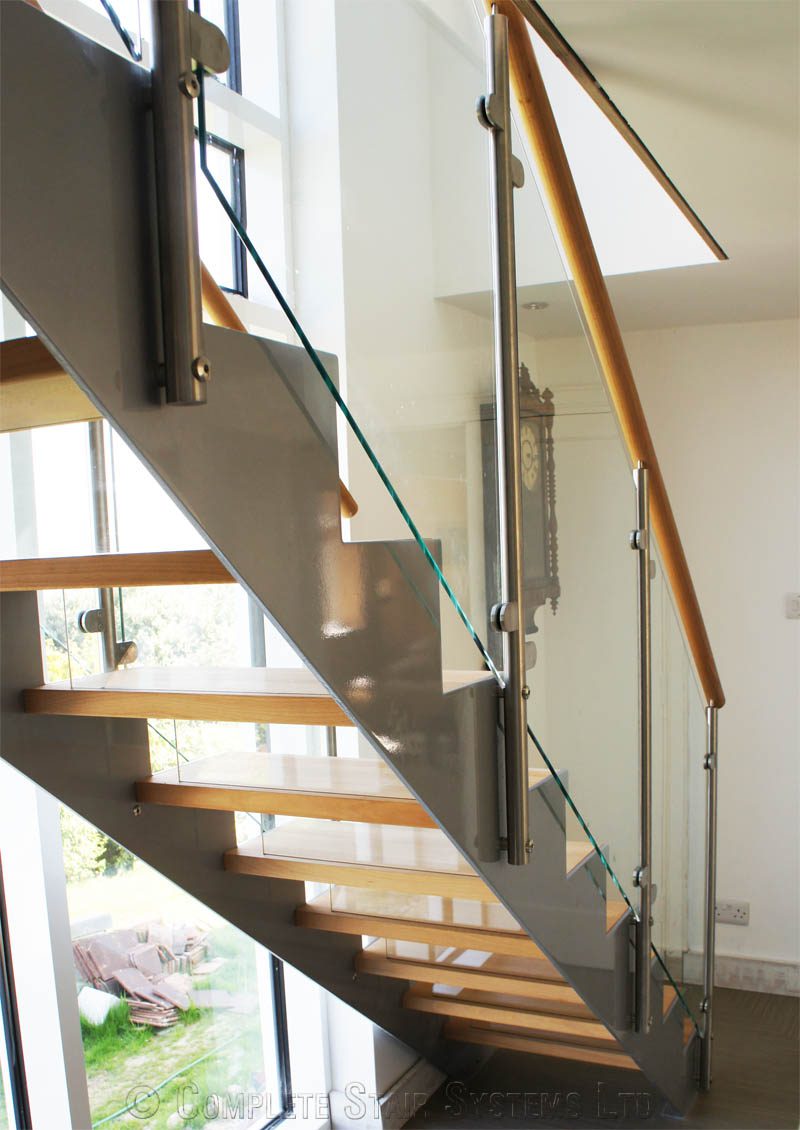

Balustrade Type glass infill panels with Stainless Posts
Handrail 42.4mm Ø Stainless Steel
Riser Infill

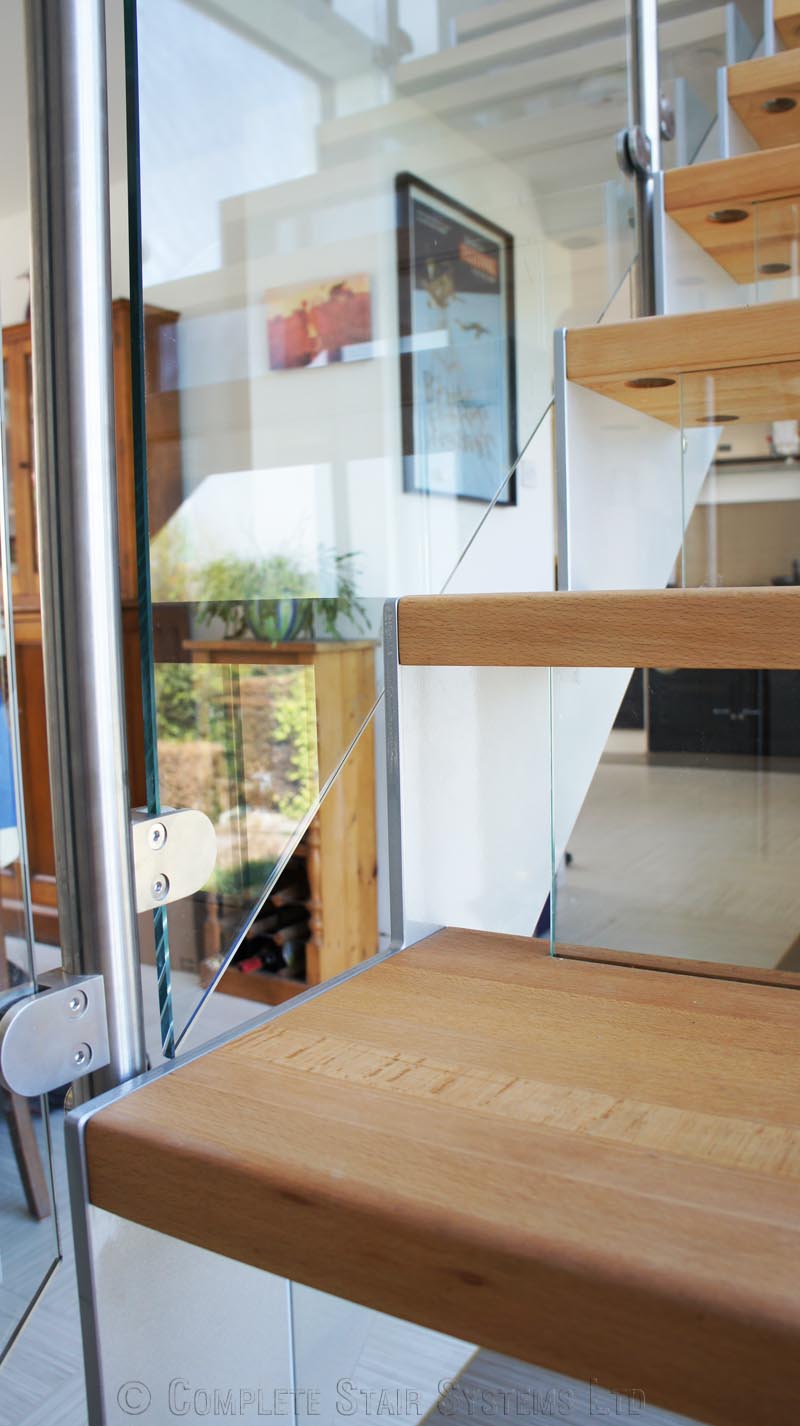

Full Glass risers
Finish of Steel Powder Coated

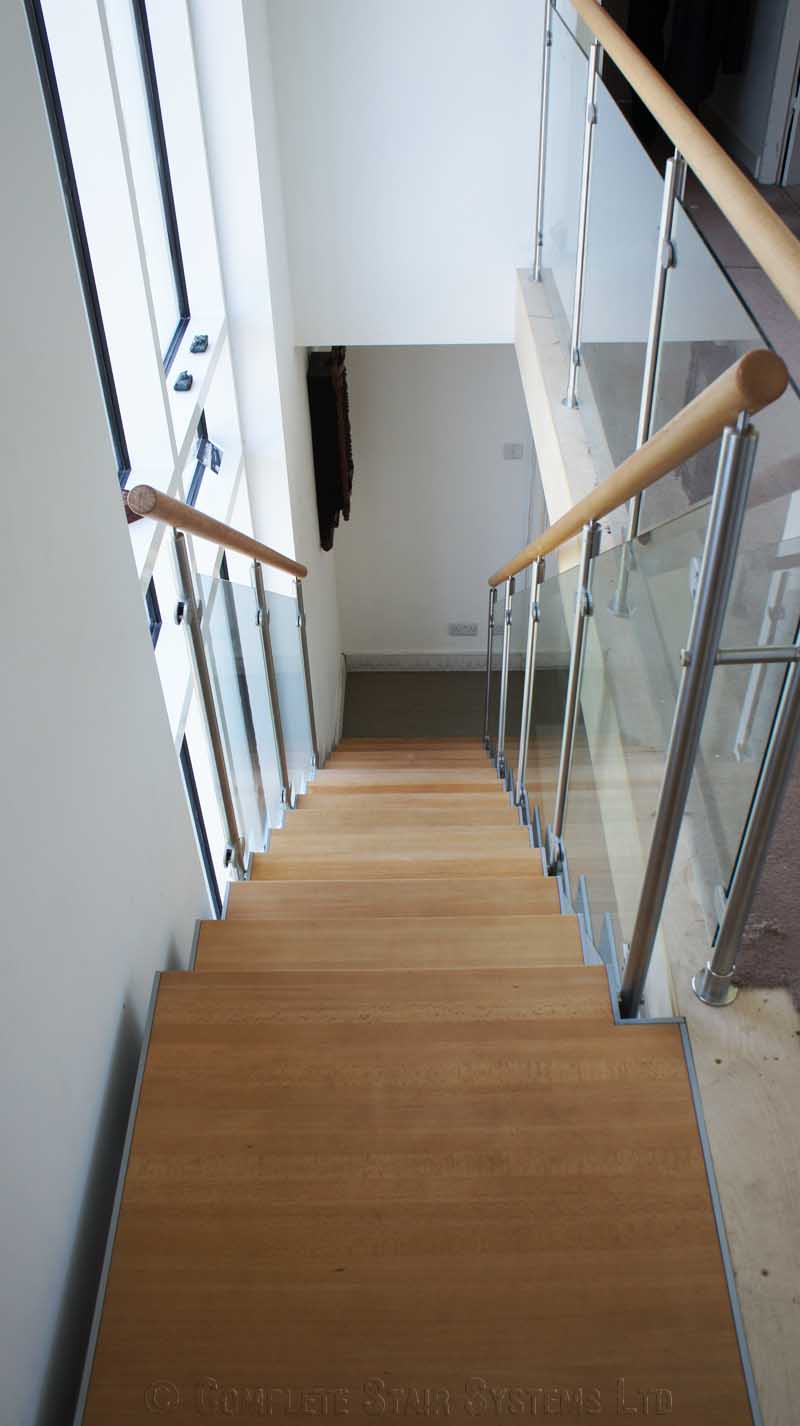

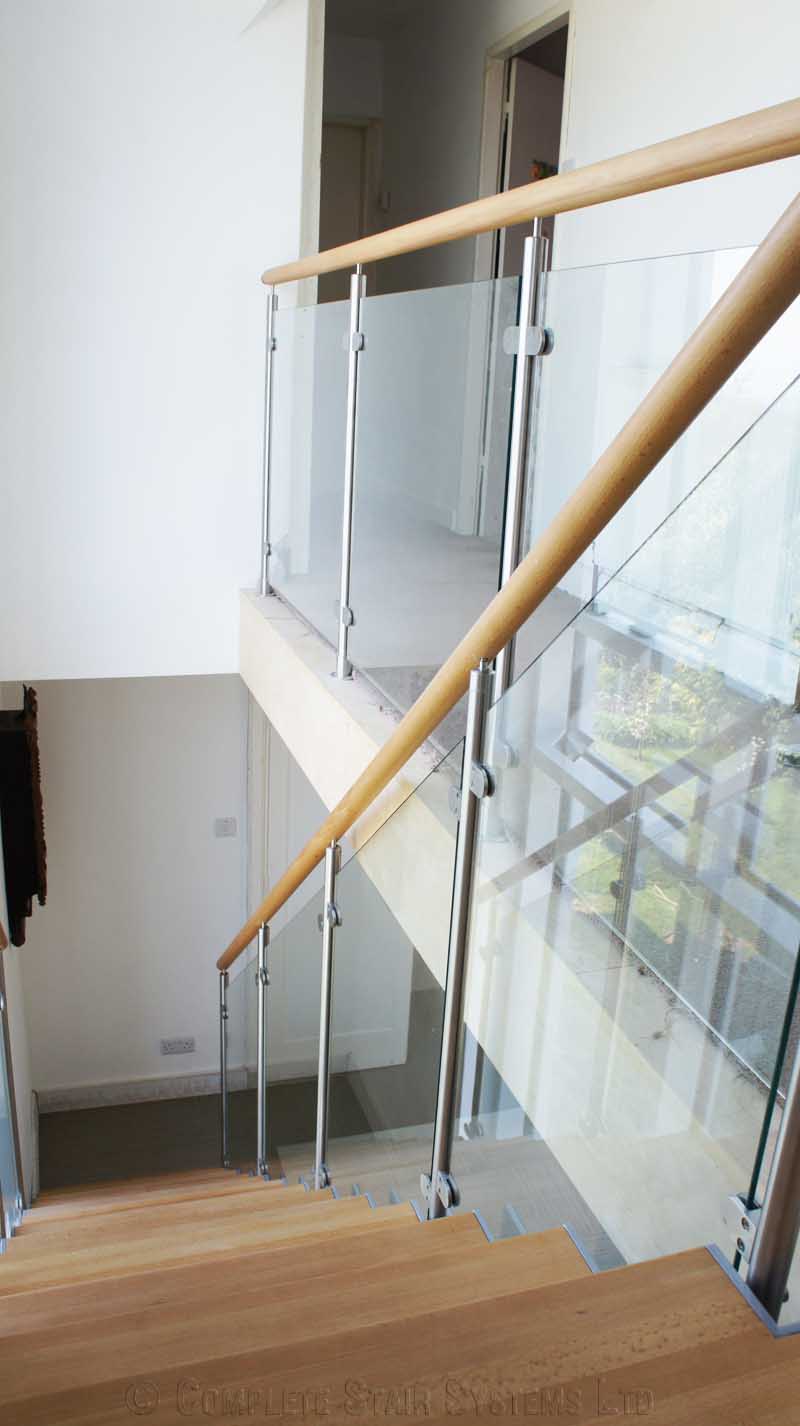

Additional Square top platform and landing balustrade

Complete Stair Systems

Comment on Bespoke Staircase Haslemere from Complete Stair Systems

Nick Rackham

Sales Manager

"As the customer wanted to keep the flight open and light - we introduced full glass risers to adhere to the 100mm gap rule. Due to the position of an adjacent window we had to ensure the balustrade was positioned correctly"

Contact us about project Bespoke Staircase - Haslemere
