Spiral Staircase Gosport – Model 71

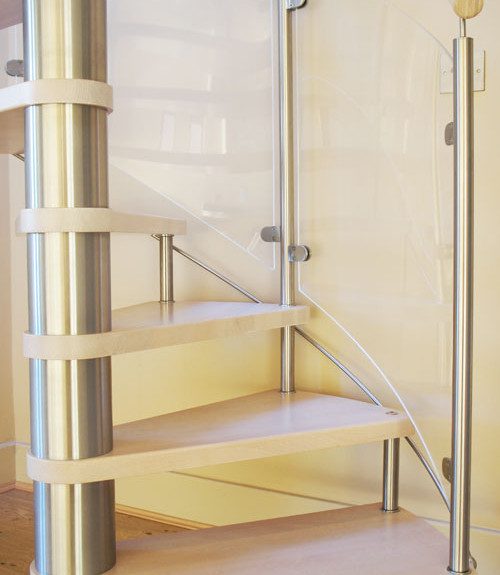

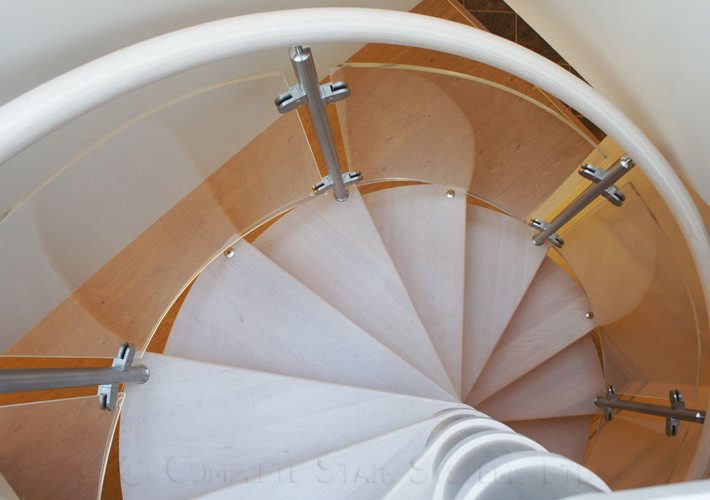

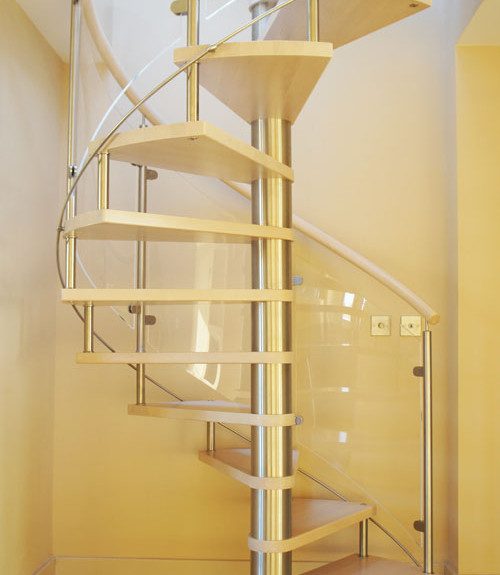

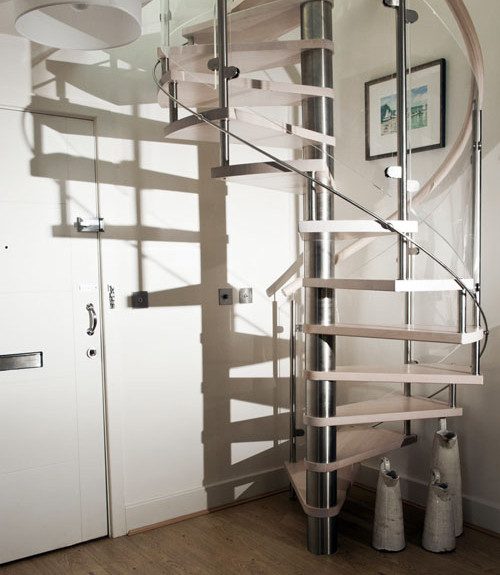

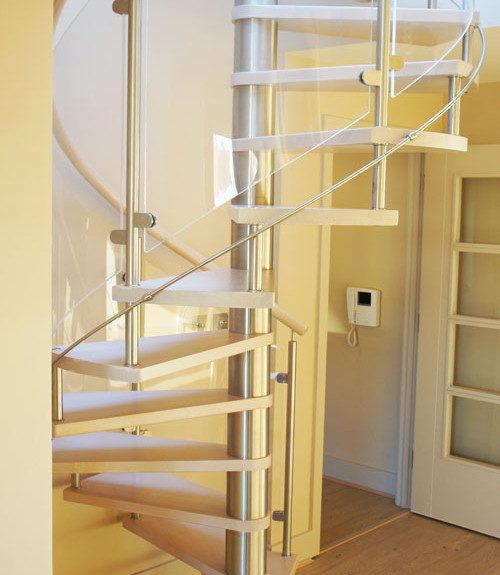

One of 5 stunning spiral staircase supplied to a developer in Gosport. Each had stained beech treads and handrail and curved acrylic balustrade panels to enhance the passage of light.

Roof Access Spiral Staircase

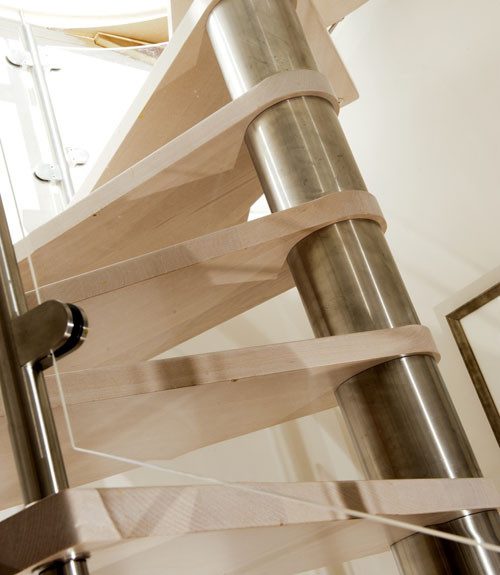

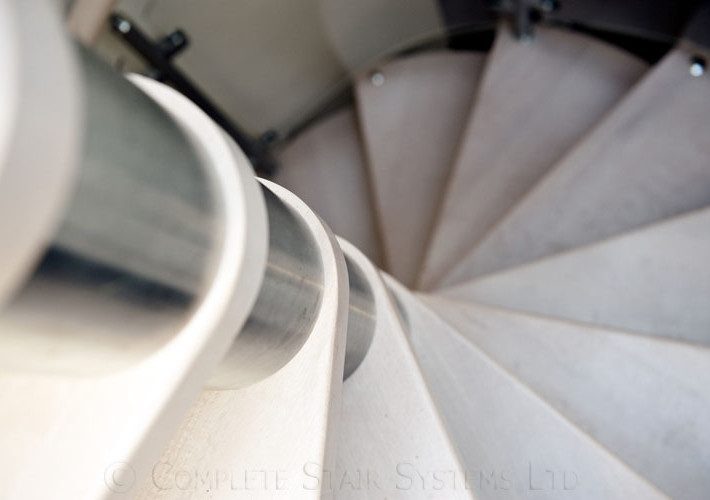

The model 71 stunning spiral staircase is a custom made model. The solid hardwood treads are slid over a centre column consisting of cylindrical barrels which hide the steel core to the column and act as spacers between the treads.

The timber is always supplied as a hardwood with a choice of :-

Beech
Oak
Ash
Maple
Birch
Walnut

The balustrade itself is in-filled by either :-

Vertical Steel Spindles
Horizontal steel rails
Curved acrylic panels
Curved Glass Panels
Curved Perforated Steel Panels

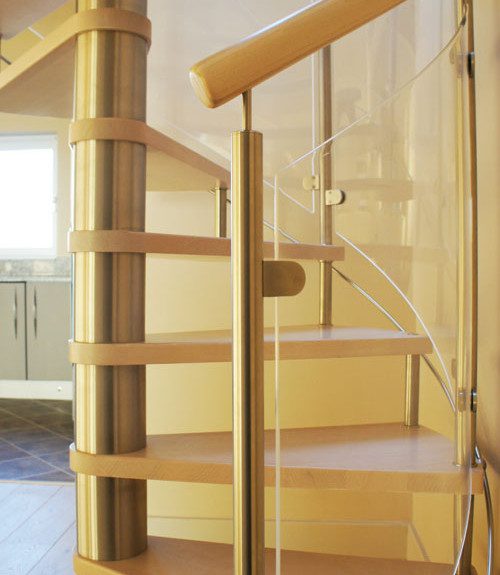

The handrail and newel posts on the Model 71 spiral staircase are made in timber or steel to match the other elements. Finish of the steel tends to be brushed stainless although we can offer polished stainless or a powder coated finish. The timber is either oiled, varnished or stained in the factory and sometime left untreated to be stained on site.

Each Model 71 spiral staircase supplied in unique. Each is carefully drawn to ensure the correct entry and exit point and sufficient headroom clearance. The system can accommodate a number of differently shaped platforms and the spiral is available in diameters up to 2200mm. For a price for your own model ‘Spiral Staircase Gosport’ – please fill out the form below.

Spiral Staircase Gosport - Model 71 - Technical Specifications

Floor to floor height2781mm
Risers14 @ 198.6mm
Spiral Diameter1500mm
Clear Tread Width600mm
Tread Type40mm Beech – Stained
Balustrade Type8mm curved acrylic panels
Handrail50mm Ø Beech – Stained
Centre ColumnBrushed Stainless Steel Barrels
Finish of SteelBrushed Stainless Steel
AdditionalSpecial platform for each flight

Complete Stair Systems

Comment on Spiral Staircase Gosport – Model 71 from Complete Stair Systems

Ed Butler

Project Manager

"A great job to be involved with. Not only was it a prestige development, we were involved very early on in the build so were able to advice about open sizes and fixing points."
