Spiral Staircase Farnham – Model 71

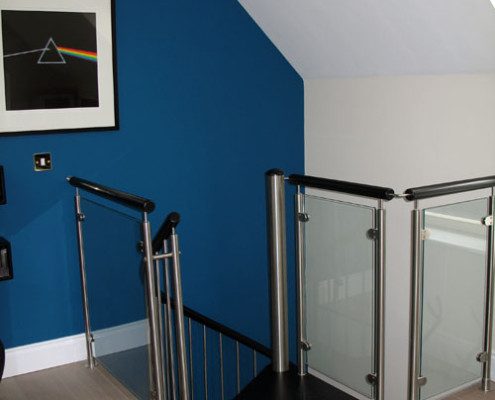

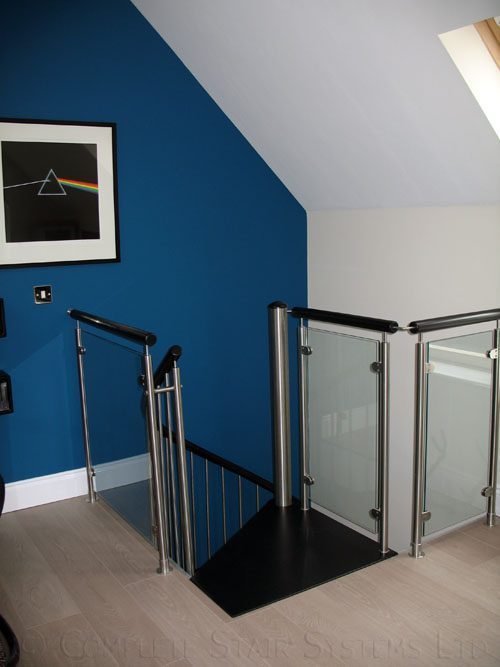

Our client with this project required a small spiral staircase to access the upper floor in their extension. They were not too keen or timber treads or steel so we decided to stain some beech black for the treads and handrail. We continued some balustrade upstairs but opted for glass infill panels rather than spindles.

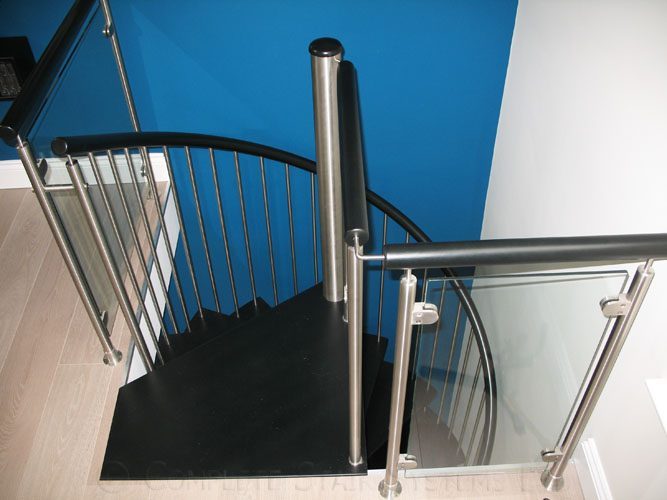

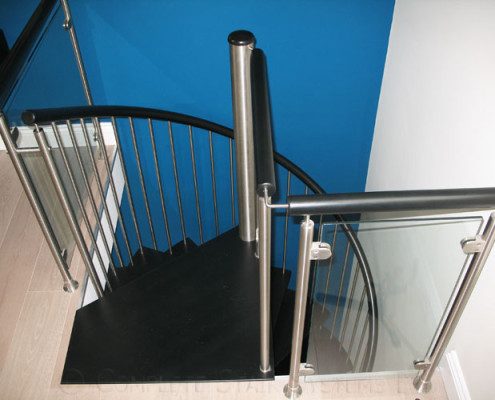

Black Spiral Staircase

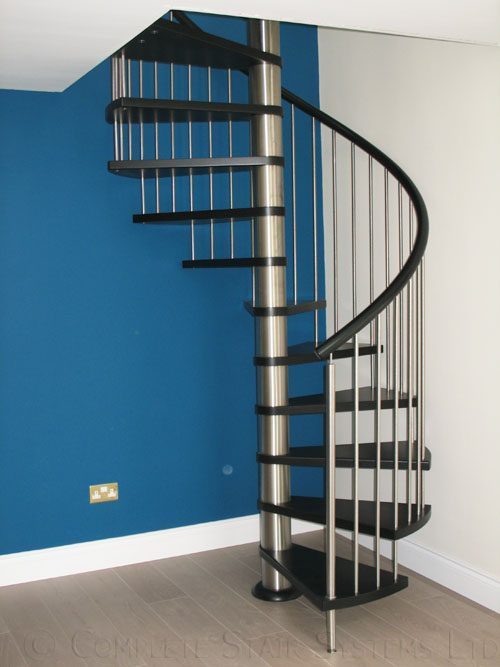

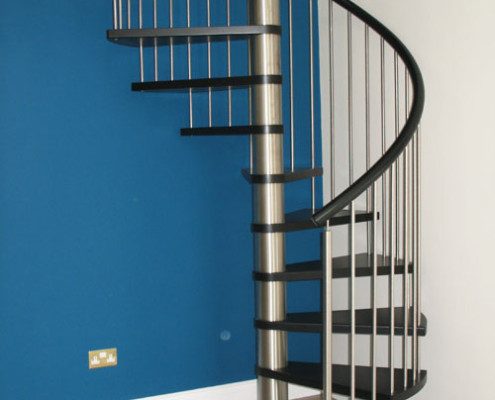

The model 71 stunning spiral staircase is a custom made model. The solid hardwood treads are slid over a centre column consisting of cylindrical barrels which hide the steel core to the column and act as spacers between the treads.

The timber is always supplied as a hardwood with a choice of :-

Beech
Oak
Ash
Maple
Birch
Walnut

The balustrade itself is in-filled by either :-

Vertical Steel Spindles
Horizontal steel rails
Curved acrylic panels
Curved Glass Panels
Curved Perforated Steel Panels

The handrail and newel posts on the Model 71 spiral staircase are made in timber or steel to match the other elements. Finish of the steel tends to be brushed stainless although we can offer polished stainless or a powder coated finish. The timber is either oiled, varnished or stained in the factory and sometime left untreated to be stained on site.

Each Model 71 spiral staircase supplied in unique. Each is carefully drawn to ensure the correct entry and exit point and sufficient headroom clearance. The system can accommodate a number of differently shaped platforms and the spiral is available in diameters up to 2200mm. For a price for your own model ‘spiral staircase Farnham’ – please fill out the form below.

Spiral Staircase Farnham - Model 71 - Technical Specifications

Floor to floor height 2641mm
Risers 13 @ 203.15mm
Spiral Diameter 1500mm
Clear Tread Width 650mm
Tread Type 40mm Beech painted black
Balustrade Type 16mm Ø Vertical stainless Spindles
Handrail 50mm Ø Beech painted black
Centre Column Brushed Stainless Barrels
Finish of Steel Brushed Stainless Steel
Additional Landing Balsutrade with glass infill panels
Complete Stair Systems

Comment on Spiral Staircase Farnham – Model 71 from Complete Stair Systems

Nick Rackham

Sales Manager

"we were struggling a little when the customer informed us they didn’t want timber or steel treads. Timber treads however were selected in the end and painted a stunning black giving the customer the look they were looking for and giving a great contrast with the stainless steel"
