Bespoke Timber Staircase Botley

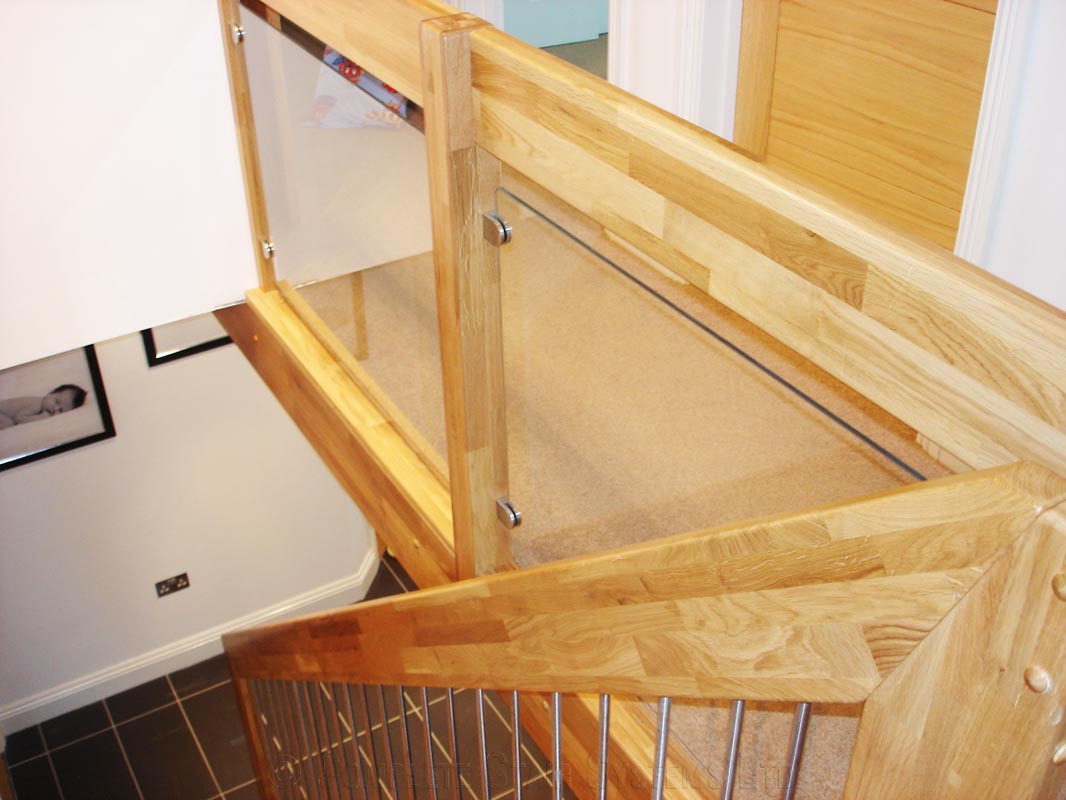

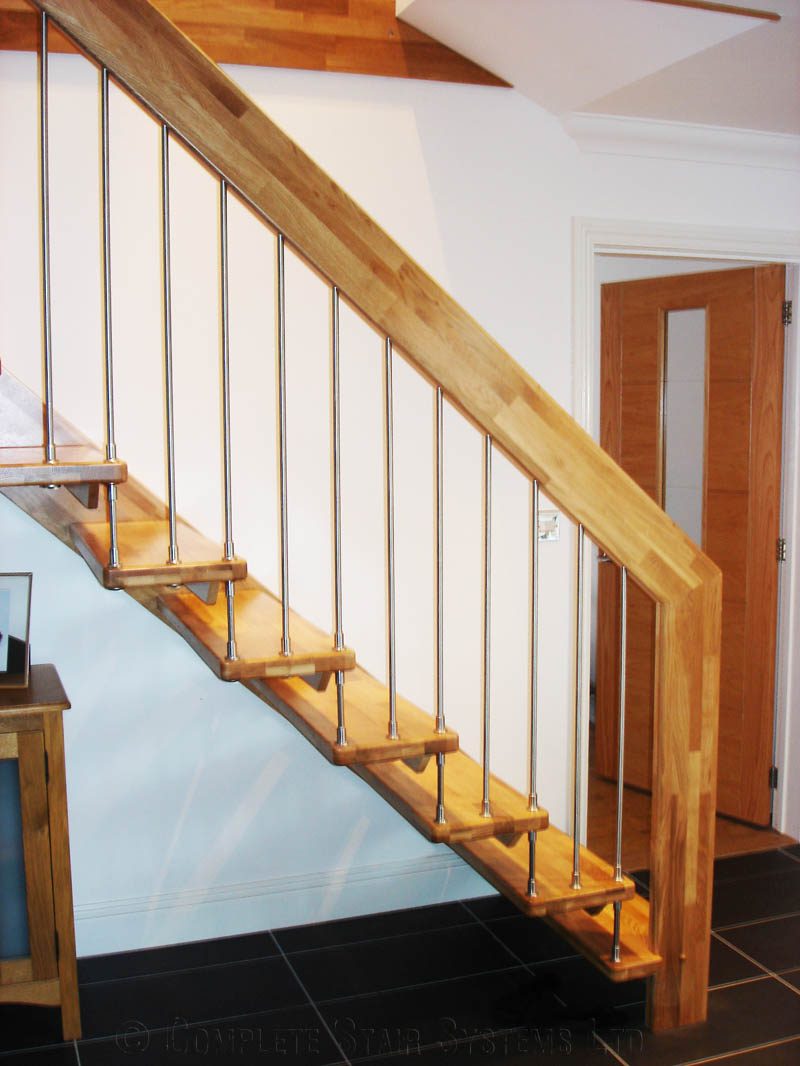

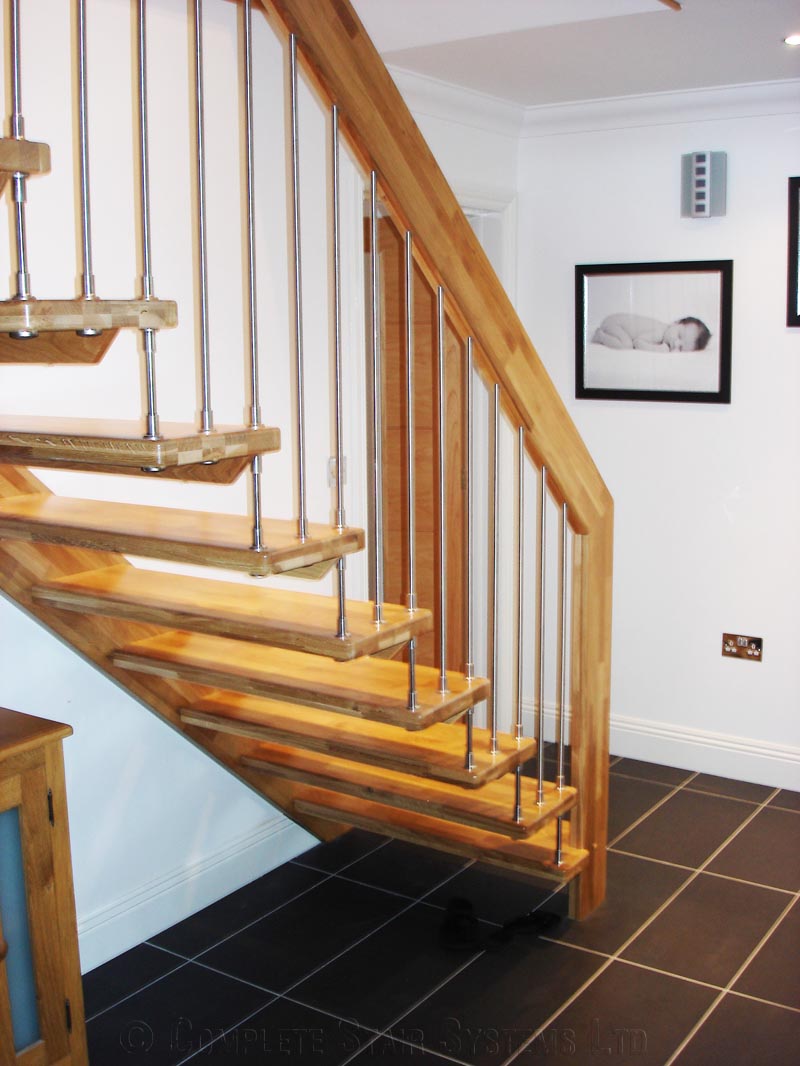

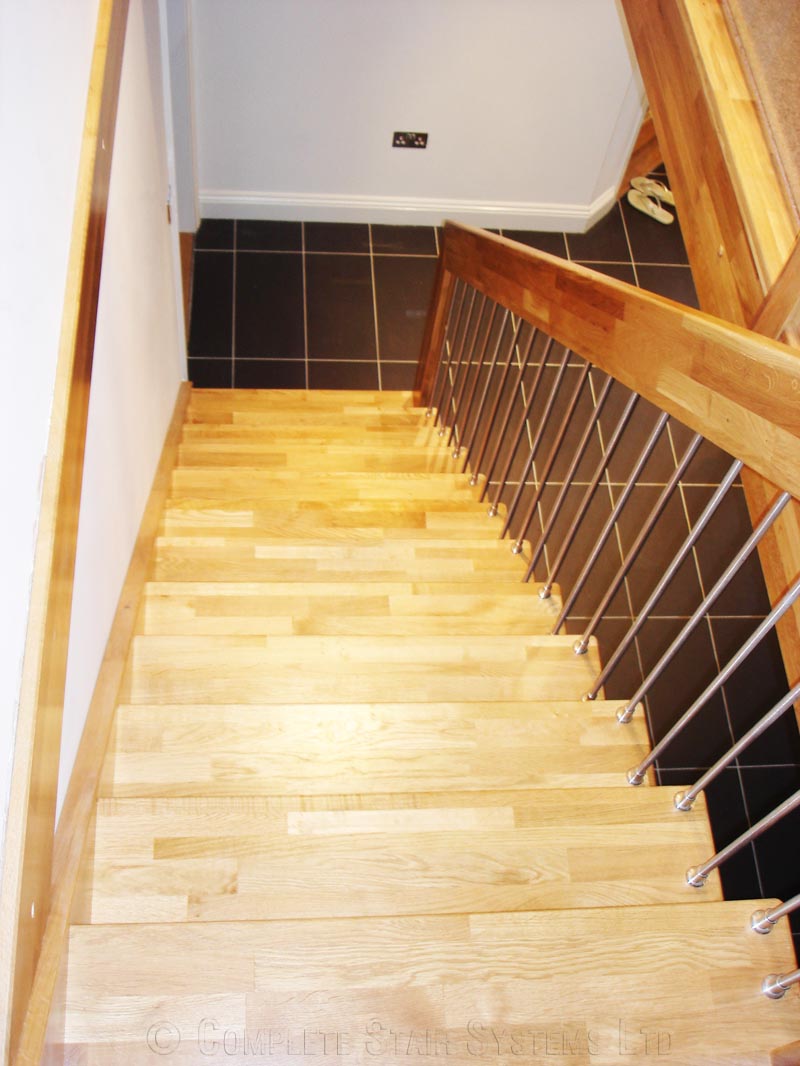

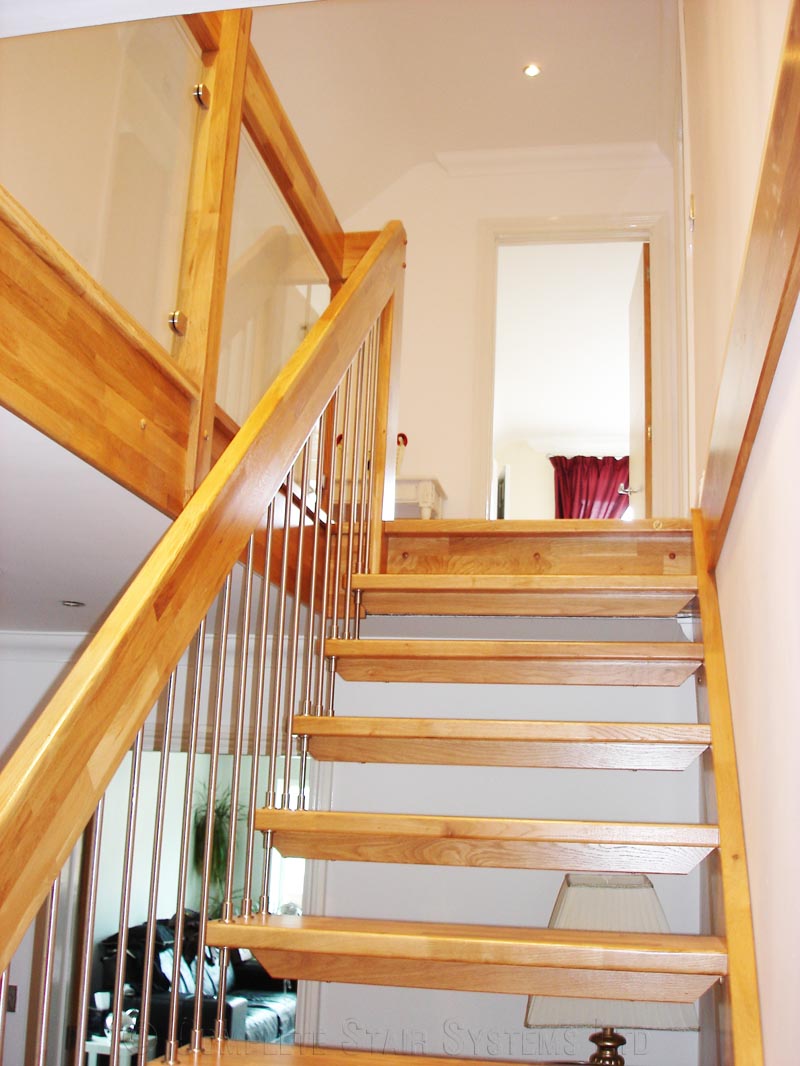

Our customer was a property developer building his own house in the town of Botley, near Southampton. What was required in the large hallway was a feature staircase that enticed you upstairs. It also had to be light and open in appearance but manufactured in solid timber. Together, we decided upon the WF open floating timber staircase which we supplied in Oak parquet. This system has open risers and no stringer on the exposed side meaning the treads float from the wall. There was a further 2m of landing balustrade upstairs which we supplied with matching timber posts and handrail and glass panels with stainless clamps. A light and open staircase manufactured in solid oak.

Straight Flight Floating Timber Stair

The WF staircase is our most open, floating bespoke timber staircase.  It has no stringer to the internal side so the treads appear to hover in mid air allowing the light to pass through.  This works with a specially designed handrail that has a steel core.  The spindles screw up into this handrail and the treads ‘load’ is therefore transferred to the handrail then to the newels top and bottom.  The WF is available as a straight flight, quarter turn or half turn depending on the location of walls.

If you would like a price for this project ‘Bespoke Timber Staircase Botley’, please fill out the form below.

Bespoke Timber Staircase Botley - Technical Specifications

Support Structure
WF Open Staircase Design
Floor to floor height 2650mm
Risers
13 @ 203.8mm
Treads 42mm Oak Parquet
Stringers 42mm Oak Parquet – Wall Stringer only
Balustrade Type 13mm Ø Stainless Steel Spindles
Handrail 160 x 42mm Oak Handrail
Newel Posts 160 x 42mm Oak newel posts
Finish of Timber
Varnished
Additional Landing balustrade with glass panels

Timber Options
